DB-8425/DIN

DB-8425/DIN

ICP DAS
SKU: 02770400

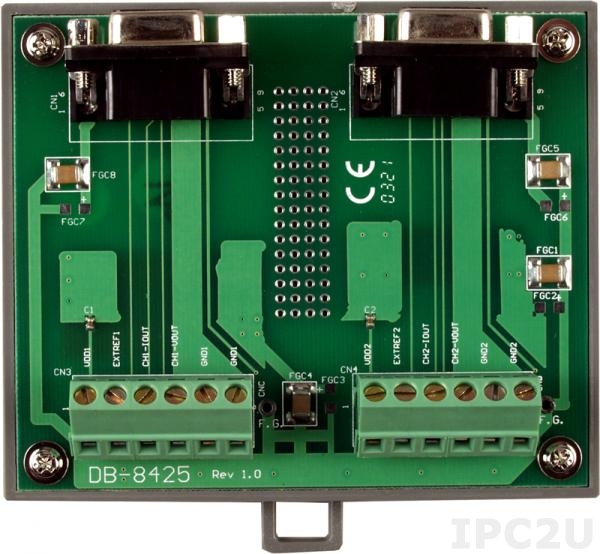

Screw Terminal Board for PISO-DA2, DIN-Rail Mounting
Price on request
Available
Available

Connectors
Connectors
DB37 Female
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.87 kg

Documentation
DB-8x25_1825 Series Manual.pdf

Get a Quote
