CL-212

CL-212

ICP DAS
SKU: 07872900

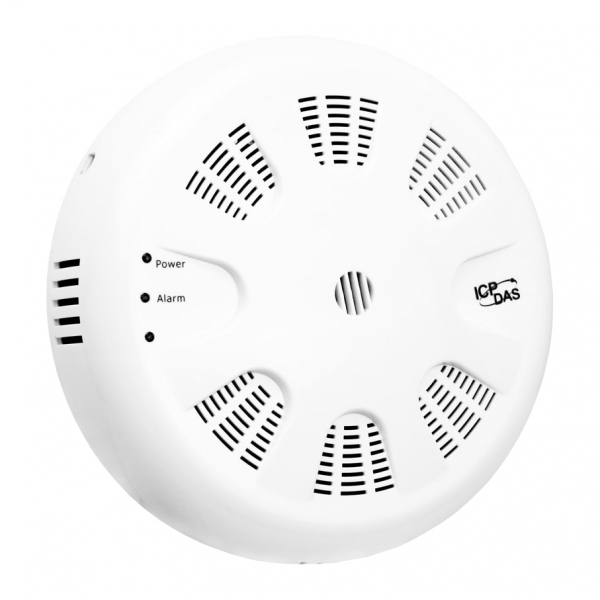

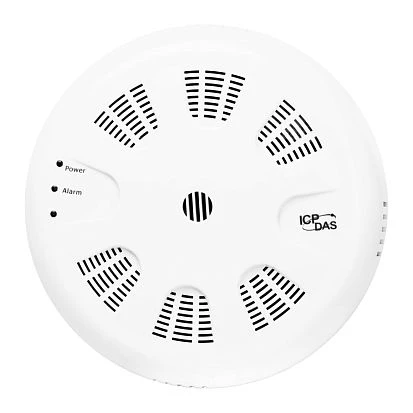

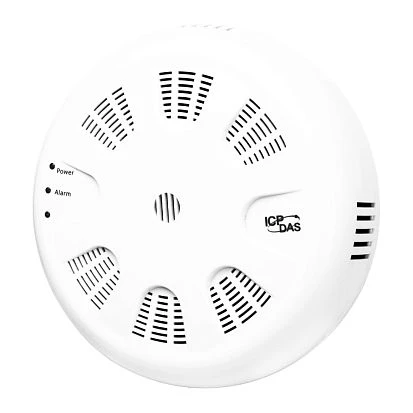

Remote PM2.5/CO2/Temperature/Humidity/Dew Point Data Logger Module (RoHS)
End-of-life product

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP20
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
COM Total
1
RS-485
1
Sensors
Measuring Range
-10...+50 °С
Resolution
0.1 °C
Accuracy (+/-)
0.6 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Types of gases and particles measured
(CO2), (PM2.5)
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
150 mm
Height
53 mm
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP20
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
COM Total
1
RS-485
1
Sensors
Measuring Range
-10...+50 °С
Resolution
0.1 °C
Accuracy (+/-)
0.6 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Types of gases and particles measured
(CO2), (PM2.5)
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
150 mm
Height
53 mm
Dimensions
Gross Weight
1 kg
