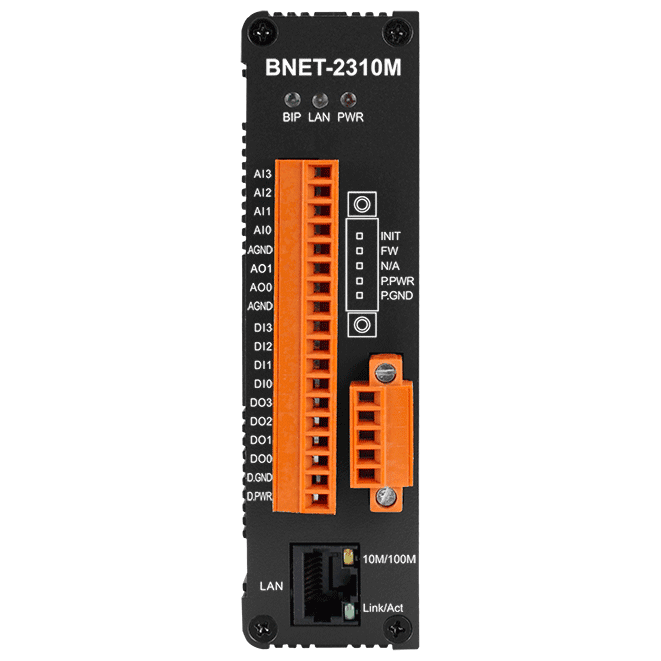

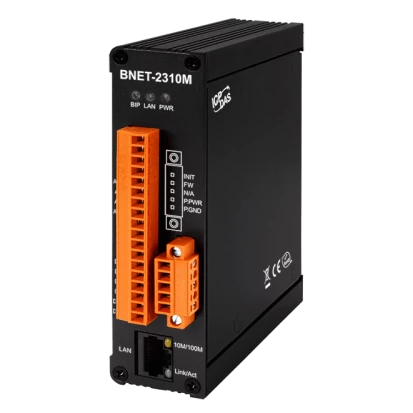

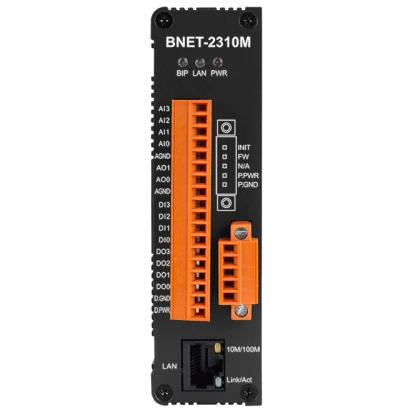

BNET-2310M
ICP DAS
SKU: 11647800
Multifunction BACnet/IP I/O module, 4 AI 1/2.5/5/10V, 2 AO 0-5/5/0-10/10V, 4 DI, 4 DO 10-40V, 1xLAN, 10-30VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
BACnet/IP slave
Analog Input
Total channels of analog input
4
Number of Bits
16 Bit
Voltage range
+/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Sampling rate
10 Hz
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Digital Input
Total channels of digital input
4
Type
Dry contact
Sink/Source
Dry: Source
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Source
Output voltage
10~40 V
Max. load current
650 mA
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
106 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.26 kg
Gross Weight
0.38 kg
Construction
