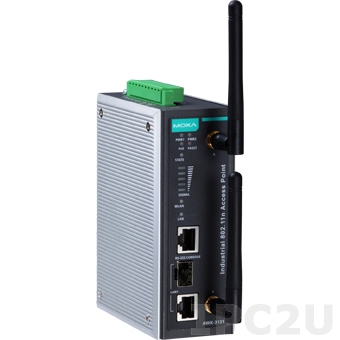

AWK-3131-M12-EU-T

AWK-3131-M12-EU-T

MOXA
SKU: 06396200
300Mbps Wireless Access Point, 2xDI, 1xRelay Output, IEEE 802.11a/b/g/n, DHCP Support, External Antenna, -40...+75C, M12 Connector
End-of-life product

Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
M12
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n, 802.11a, 802.11b, 802.11g, 802.11n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
HTTP, UDP, DNS, DHCP, SNMP, SNTP, TCP, ICMP
Security Protocols
HTTPS, RADIUS, Firewall, IP Address Filtering, IEEE 802.1X Network Access Control, AES
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
LED
Level signal LED, STATE LED, FAULT LED, PoE LED, 10/100M LED, WLAN LED, LAN LED, PWR1, PWR2
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Power Consumption
5.93 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.97 kg
Gross Weight
1.52 kg
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
M12
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n, 802.11a, 802.11b, 802.11g, 802.11n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
HTTP, UDP, DNS, DHCP, SNMP, SNTP, TCP, ICMP
Security Protocols
HTTPS, RADIUS, Firewall, IP Address Filtering, IEEE 802.1X Network Access Control, AES
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
LED
Level signal LED, STATE LED, FAULT LED, PoE LED, 10/100M LED, WLAN LED, LAN LED, PWR1, PWR2
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Power Consumption
5.93 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.97 kg
Gross Weight
1.52 kg
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
M12
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n, 802.11a, 802.11b, 802.11g, 802.11n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
HTTP, UDP, DNS, DHCP, SNMP, SNTP, TCP, ICMP
Security Protocols
HTTPS, RADIUS, Firewall, IP Address Filtering, IEEE 802.1X Network Access Control, AES
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
LED
Level signal LED, STATE LED, FAULT LED, PoE LED, 10/100M LED, WLAN LED, LAN LED, PWR1, PWR2
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Power Consumption
5.93 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.97 kg
Gross Weight
1.52 kg
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
M12
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n, 802.11a, 802.11b, 802.11g, 802.11n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
HTTP, UDP, DNS, DHCP, SNMP, SNTP, TCP, ICMP
Security Protocols
HTTPS, RADIUS, Firewall, IP Address Filtering, IEEE 802.1X Network Access Control, AES
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
LED
Level signal LED, STATE LED, FAULT LED, PoE LED, 10/100M LED, WLAN LED, LAN LED, PWR1, PWR2
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Power Consumption
5.93 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.97 kg
Gross Weight
1.52 kg

Documentation
AWK-3131A Datasheet
Documentation
AWK-3131A Datasheet
Documentation
AWK-3131A Datasheet
Documentation
AWK-3131A Datasheet
