ANR-C236N1-K2D0T-E3

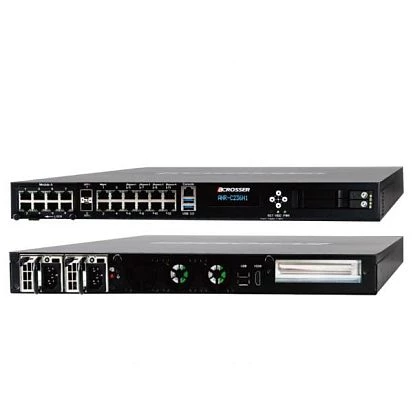

ANR-C236N1-K2D0T-E3 High performance server with Intel Xeon E3-1275, up to 64 GB DDR4 RAM, 2xSATA, RAID, 12xGbE LAN RJ45, 2xSFP combo In its basic configuration, the 1U Rackmount Server ANR-C236N1-K2D0T-E3 uses an Intel Xeon E3-1275 v6 processor that runs at a clock frequency of 4.20 GHz maximum on four cores and eight virtual threads with a considerable computing performance. To help them, the CPU to an integrated graphics with flexible 1.70 GB shared memory and a DDR4 RAM of up to 64GB. Despite the low height of only 1U in a 19'' rack, the ANR-C236N1-K2D0T-E3 sets one IT environment, which is achieved in this performance and to this extent only by larger models. Internally, the Rackmount server has two 2.5-inch Drive Bay with SATA 3.0 and 6 Gbit/s transfer rate, which can be combined as required as hardware RAID 0/1 on performance or security. For individual extensions, the Industrial Grade Server also has a full size Mini PCIe slot with compatibility for mSATA drives, CFast socket and OPMA for an IPMI 2.0 module. In addition to an Intel Xeon, the CPU socket also supports Intel Core i3/i5/i7 processors 7th Generation Kabylake. As DDR4 RAM, the High Performance Server allows both the use of desktop modules as well as those with an ECC error correction for server operation. The ANR-C236N1-K2D0T-E3 use high number of LAN ports with Gigabit Ethernet as an IT backbone or network security server. In addition to 12 RJ45 with 10/100/1000 Mbps are located including two combo ports for SFP with fiberglass or copper bonding and a bandwidth of 10 Gbit/s. Other interfaces include an HDMI 1.4 graphic output for direct management instead of a headless server, console port in RJ45 as well as two USB 3.0 at the front and two additional USB 2.0 at the back. Onboard, the 1U Server Rackmount also has a GPIO with 8bit DIO. A 16x2 character LCM with input via arrow keys is for the convenience operational control and the rapid configuration of important parameters. The hardware of the ANR-C236N1-K2D0T-E3 is for a permanent and long-term operation 24/7/365 and has a redundant power supply over two ATX PSU power supplies of a maximum power of 300 watts. The High Performance Server is an ideal candidate for a efficient IT infrastructure in service and industry, server consolidation and upgrades existing systems and network security through intensive, data- and data-intensive monitoring such as Deep Packet Inspection. Product variants and order code CPU 10G Fiber PSU ANR-C236N1-K2D0T-E3 Intel Xeon E3-1275 v6 2x Redundant PSU ANR-C236N1-K2D0T-i7 Intel Kabylake Core i7-7700 2x Redundant PSU ANR-C236N1-K2D0T-i5 Intel Kabylake Core i5-7500 2x Redundant PSU ANR-C236N1-K2D0T-i3 Intel Kabylake Core i3-7101E 2x Redundant PSU ANR-C236N1-K2D00-E3 Intel Xeon E3-1275 v6 0x Redundant PSU ANR-C236N1-K2D00-i7 Intel Kabylake Core i7-7700 0x Redundant PSU ANR-C236N1-K2D00-i5 Intel Kabylake Core i5-7500 0x Redundant PSU ANR-C236N1-K2D00-i3 Intel Kabylake Core i3-7101E 0x Redundant PSU ANR-C236N1-K1D00-E3 Intel Xeon E3-1275 v6 0x Single PSU ANR-C236N1-K1D00-i7 Intel Kabylake Core i7-7700 0x Single PSU ANR-C236N1-K1D00-i5 Intel Kabylake Core i5-7500 0x Single PSU ANR-C236N1-K1D00-i3 Intel Kabylake Core i3-7101E 0x Single PSU Product variants and order code CPU 10G Fiber PSU ANR-C236N1-S2D0T-E3-1275 Intel Xeon E3-1275 v5 2x Redundant PSU ANR-C236N1-S2D0T-E3-1268L Intel Xeon E3-1268L v5 2x Redundant PSU ANR-C236N1-S2D0T-E3-1225 Intel Xeon E3-1225 v5 2x Redundant PSU ANR-C236N1-S2D0T-i7 Intel Skylake Core i7-6700(TE) 2x Redundant PSU ANR-C236N1-S2D0T-i5 Intel Skylake Core i5-6500 2x Redundant PSU ANR-C236N1-S2D0T-i3 Intel Skylake Core i3-6100(TE) 2x Redundant PSU ANR-C236N1-S2D0T-G4400 Intel Skylake Pentium G4400 2x Redundant PSU ANR-C236N1-S2D00-E3-1275 Intel Xeon E3-1275 v5 0x Redundant PSU ANR-C236N1-S2D00-E3-1268L Intel Xeon E3-1268L v5 0x Redundant PSU ANR-C236N1-S2D00-E3-1225 Intel Xeon E3-1225 v5 0x Redundant PSU ANR-C236N1-S2D00-i7 Intel Skylake Core i7-6700(TE) 0x Redundant PSU ANR-C236N1-S2D00-i5 Intel Skylake Core i5-6500 0x Redundant PSU ANR-C236N1-S2D00-i3 Intel Skylake Core i3-6100(TE) 0x Redundant PSU ANR-C236N1-S2D00-G4400 Intel Skylake Pentium G4400 0x Single PSU ANR-C236N1-S1D00-E3-1275 Intel Xeon E3-1275 v5 0x Single PSU ANR-C236N1-S1D00-E3-1268L Intel Xeon E3-1268L v5 0x Single PSU ANR-C236N1-S1D00-E3-1225 Intel Xeon E3-1225 v5 0x Single PSU ANR-C236N1-S1D00-i7 Intel Skylake Core i7-6700(TE) 0x Single PSU ANR-C236N1-S1D00-i5 Intel Skylake Core i5-6500 0x Single PSU ANR-C236N1-S1D00-i3 Intel Skylake Core i3-6100(TE) 0x Single PSU ANR-C236N1-S1D00-G4400 Intel Skylake Pentium G4400 0x Single PSU
