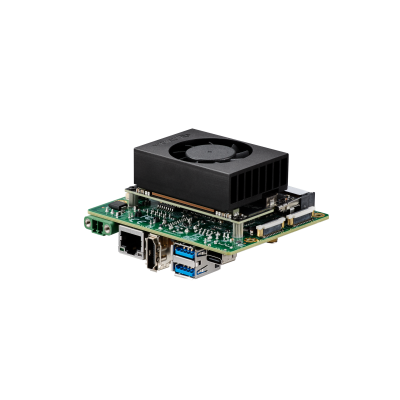

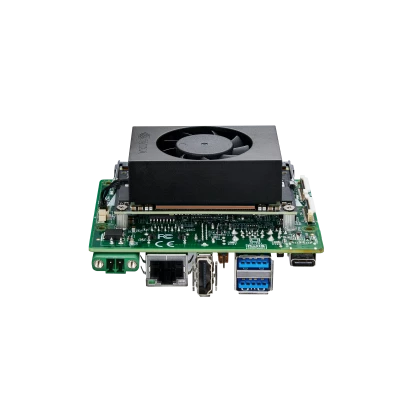

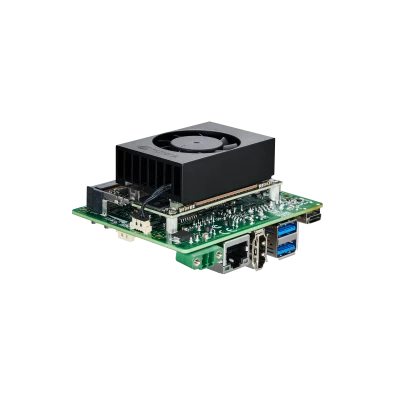

AIB-SN41-1-A1
AETINA
SKU: 80255600
Edge AI SBC, NVIDIA Jetson Orin NX 8-Core 2.0GHz SoM, Ampere 1024-Core GPU, 16GB LPDDR5 RAM, 128GB NVMe SSD, HDMI, 1xGbE LAN, 2xUSB 3.2, 1xUSB Type-C OTG, 1xCOM, 1xCAN, 5-bit GPIO, 2xUART, 1xI2C, 1xI2S, 1xM.2 Key-E, 12-24VDC-in with 60W PSU
Price on request
Available
Available
System Architecture
Form Factor
System on Module (SoM)
Construction
Type
Fan
CPU
Processor Installed
Nvidia Jetson Orin NX (8-Core)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB v3.x
3
Digital Input-Output
Channels of DIO
5
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2230 E
Connectors
Internal Ports
COM, GPIO, I2C
Connectors
HDMI, RJ45 Ethernet, 2xUSB, DC input (terminal block), USB type C
Software
Operating System Compatibility
Ubuntu 20.04
Dimensions and weight
Width
87.4 mm
Length
67.4 mm
Operating Conditions
Operating Temperature
-25..80 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.14 kg
Gross Weight
0.35 kg
