AIB-AT68

AIB-AT68

AETINA
SKU: 80249900

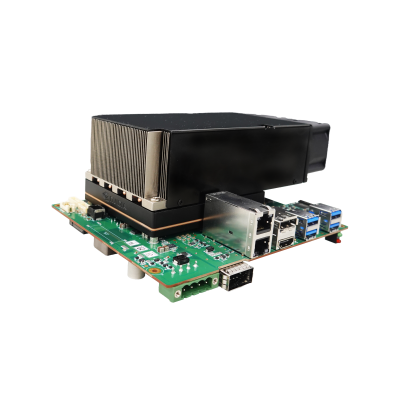

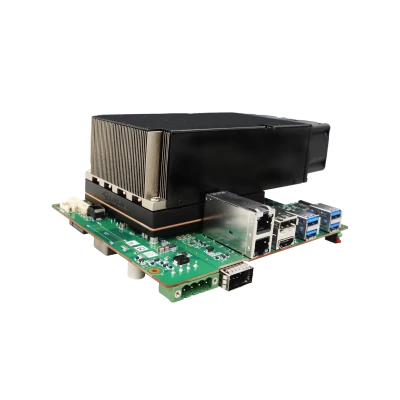

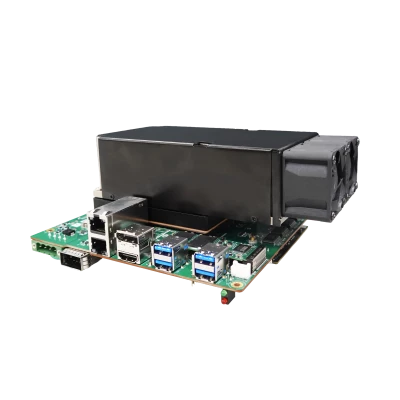

Edge AI SBC, NVIDIA Jetson T4000 12-Core 2.6GHz SoM, Blackwell 1536-Core GPU, 64GB LPDDR5x RAM, 1TB NVMe SSD, HDMI, DP, 2x10GbE LAN, 1xGbE LAN, 4xUSB 3.2, 1xUSB 3.2 Type-C, 2xCOM, 4xCAN, 8-bit DIO, 2xUART, 2xI2C, 1xM.2 Key-B, 1xM.2 Key-E, 9-48VDC-in
Price on request
Available
Available

System Architecture
Form Factor
System on Module (SoM)
Construction
Type
Fans
CPU
Processor Installed
Nvidia Jetson T4000
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
64 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Blackwell, 1536-cores, 64 Tensor Cores
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
1
10 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB v3.x
5
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
1024 GB
Extension Slots
Total
3
SIM Card slots
Yes, 1, Micro-SIM
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B
Connectors
Internal Ports
2xCOM, 10-pin DIO, I2C
Connectors
HDMI, 3xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), USB type C
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
165 mm
Length
140 mm
Operating Conditions
Operating Temperature
-25..80 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.5 kg
Gross Weight
0.9 kg
System Architecture
Form Factor
System on Module (SoM)
