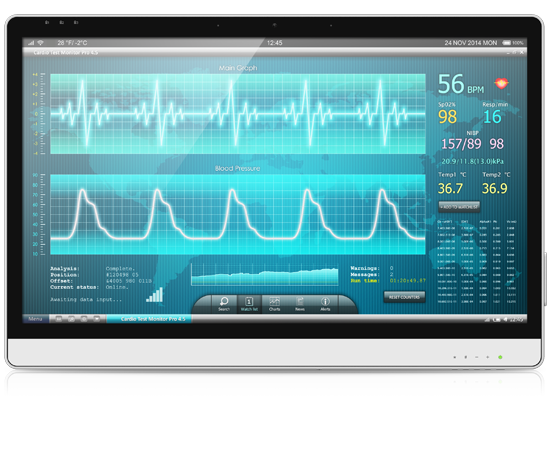

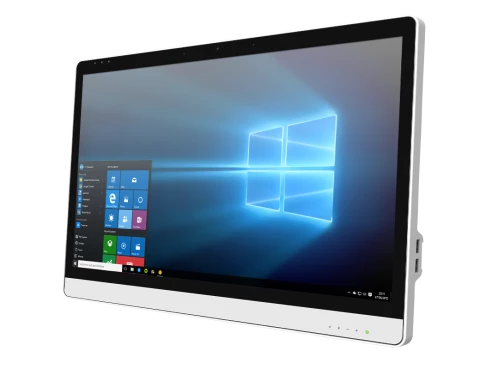

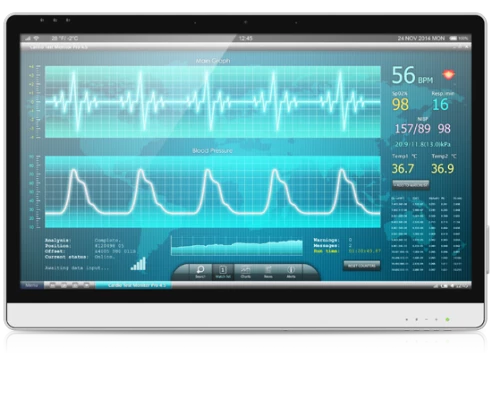

722M/724M-Medical-Monitor--M
DT Research
SKU: 80138300
21.5"/23.8" Medical Monitor, 1920x1080, 250cd/m2, PCAP Touch, HDMI, 3xUSB 3.0, 2xUSB 2.0, 1xUSB Type-B Input, 1xUSB Type-B Touch, 2xCOM, Mic/Audio, WiFi Ant., NFC/RFID Opt., 3xDC-out (19V/15V/12V) Opt., 3x90Wh Battery Opt., 19VDC-in with PSU
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Wall, Wall VESA 100
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Additional Functions
Camera Frontside
5 MP
Connectors
Connectors
2xDB9, HDMI, 3xUSB, 2xSMA, 2xUSB Type B, 3xDC Output
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Supported Types of Power Supply
Li-battery Pack
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..40 °C
Humidity
5-90%
Temperature (Storage)
-20~+60
Dimensions and weight
Width
564.3 mm
Height
370.9 mm
Depth
41.2 mm
Standards and Certifications
Certifications
FCC Class B
Medicine
IEC 60601-1
Safety
CCC, IEC 62368-1
Dimensions
Net Weight
7.5 kg
Gross Weight
9 kg
