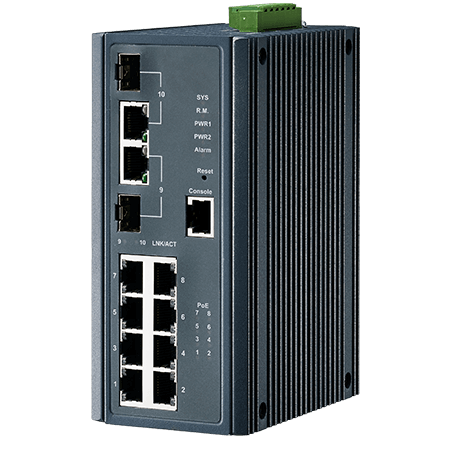

Winmate, a leader in rugged computing and industrial networking solutions, has introduced its EACSW-L2 Plug and Play SFP Fiber Marine Switch, designed for demanding maritime and industrial environments. The new switch offers fiber expansion, redundancy, security, and remote management features to meet the connectivity challenges aboard ships and offshore platforms.
Key Features & Capabilities
- Ports: 8 × IEEE 802.3af/at PoE Fast Ethernet ports + 2 × Gigabit Copper/SFP combo ports
- Fiber expansion: SFP sockets for long-distance, interference-free marine connections
- Redundancy: Gigabit X-Ring Pro with <20 ms recovery, supports RSTP/STP (802.1w/1D)
- Centralized management: IXM batch configuration, Advantech NMS software integration
- Security: 802.1x authentication, RADIUS, SNMP v1/v2c/v3, Web and Telnet interfaces
- Industrial-grade design: Fanless, IP30 protection, –15 °C to +55 °C operating range
Technical Specifications
- Dimensions: 74 × 152 × 105 mm
- Power: 24–48 VDC (redundant dual input)
- Power consumption: ~12.1 W @ 48 V DC
- Humidity: 5%–95%
- Mounting: DIN-rail or wall mount
- Certifications: CE, FCC
Applications
The EACSW-L2 is ideal for:
- Shipboard and offshore platform networks
- Maritime surveillance and automation systems
- Harbor and coastal infrastructure
- Marine IoT and sensor connectivity
Summary
Winmate’s EACSW-L2 expands the company’s marine networking lineup with a rugged, fiber-ready switch optimized for reliability and easy management. With growing demand for connected and autonomous vessels, the EACSW-L2 stands out as a powerful solution for next-generation maritime networks.
