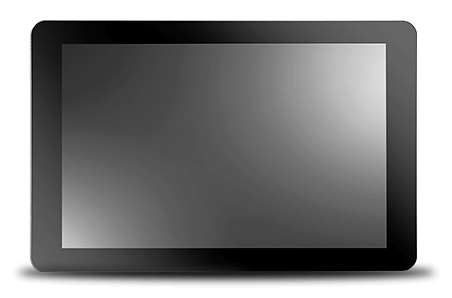

Wincomm presents a new WMP-109 model: a 10.1-inch fanless panel PC based on the next-generation Intel Alder Lake-N N97 CPU, specifically designed for use in medical industry, healthcare, and industrial automation. Based on the ideas of the previous 10.1-inch WMP-105 model, WMP-109 delivers higher performance, energy efficiency, and versatile mounting options—all in a compact, elegant chassis.
Key features of WMP-109:
- New Intel Alder Lake-N N97 CPU
The quad-core processor with a maximum clock speed of up to 3.6 GHz delivers significantly higher computing power than previous models while maintaining low power consumption (TDP of only 6 W).
- Expandable DDR5 memory and storage
Support for DDR5 SO-DIMM modules (up to 16 GB) for fast data processing, and an M.2 M-key 2280 SSD (128 GB NVMe by default) for reliable and high-speed storage.
- Wide selection of I/O interfaces
2 USB 3.2 Gen 2, 2 USB 2.0, 1 RS232/422/485 COM port, 2 HDMI, 2 RJ-45 Gigabit Ethernet ports, and support for M.2 Wi-Fi/Bluetooth wireless modules (optional).
- Optional PoE
For simplified network deployment and flexible installation, a Power over Ethernet (PoE) option is available, which is ideal for signage or kiosks.
Adaptation for medical industry and other applications
- Medical Certification
In addition to office-grade EMC Class B certification, UL/EN 60601-1 medical certification is available upon request for safe operation in hospitals and clinics.
- Fanless cooling design
Ensures reliable, quiet operation in a variety of environments, dust protection, and reduced maintenance.
- Easy to clean front panel with IP65 protection
The IP65-rated front panel prevents dust and moisture ingress, allowing for safe cleaning and meeting strict hygiene requirements.
- 10-point capacitive touchscreen
The bright screen (350 nits) with a 170° viewing angle and 7H surface hardness ensures comfortable and reliable use, especially in medical, kiosk, or industrial HMI applications.
- Enhanced security and reliability
TPM 2.0 data protection and long-term supply chain support ensure stability throughout the product's lifecycle.
With the global development of telemedicine, self-service systems and smart hospital door signs, WMP-109 is ideal for applications where compactness and aesthetics are important. Additional options such as PoE, RFID, and a camera make it a versatile platform for medical, automation, and other applications. In addition to the standard configuration, Wincomm offers a wide range of customization options (such as adding 4G cellular modules, additional COM ports, or applying a special coating to the housing) to precisely tailor the WMP-109 to meet the clients’ demands.
