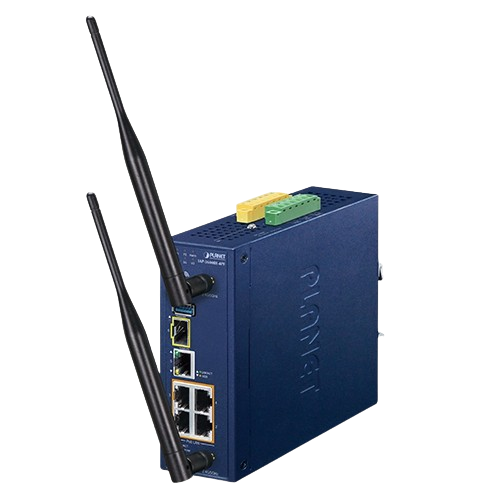

The PLANET IAP-3600BE-4PF is a rugged industrial-grade 802.11be (Wi-Fi 7) wireless access point designed for mission-critical networks. Built with an IP30-rated metal housing, it delivers ultra-fast wireless performance, high PoE power, and advanced management for harsh environments.
Next-Generation Wi-Fi 7 Performance
Compliant with IEEE 802.11be, the IAP-3600BE-4PF provides up to 2.8 Gbps on the 5GHz band and 688 Mbps on 2.4GHz. Featuring 4096-QAM, Multi-Link Operation (MLO), MU-MIMO, and beamforming, it ensures high throughput and stable multi-user connectivity.
High PoE Power and Flexible Connectivity
Equipped with 4 × 10/100/1000T 802.3at PoE ports and 1 × 1GBASE-X SFP slot, the device delivers a total PoE budget of 120W. Dual DC power inputs (48–54V) with automatic failover enhance system reliability and uptime.
Industrial Reliability and Management
The IAP-3600BE-4PF supports Access Point, Gateway, Repeater, and WISP modes. Centralized management is available through PLANET CloudViewerPro and NMS platforms, simplifying deployment and monitoring across industrial networks.
Advanced Security and PoE Management
Security features include WPA3 encryption, 802.1X authentication, TLS 1.3, and SNMPv3. Intelligent PoE functions such as power scheduling, PD Alive Check, and power recycling provide efficient control and stable device operation.
Flexible Installation and External Control
Compact and easy to mount on walls or DIN rails, the IAP-3600BE-4PF fits into tight spaces. It includes digital input/output interfaces for external alarms and supports SFP-DDM diagnostics for fiber monitoring.
Quick Specifications
- Standard: IEEE 802.11be (Wi-Fi 7)
- Radio: Dual-band concurrent (2.4 GHz / 5 GHz)
- Max Data Rate: 688 Mbps (2.4 GHz), 2882 Mbps (5 GHz)
- PoE: 4 × 802.3at, 120 W total
- SFP: 1 × 1GBASE-X (SFP)
- Temperature Range: −40°C to +70°C
- Enclosure: IP30-rated metal
- Management: CloudViewerPro, NMS
