IPC2U proudly presents the PLANET IGS-604HPT-RJ , a rugged, industrial-grade Managed Ethernet Switch engineered to thrive in the most demanding environments. Designed with an IP67-rated metal enclosure, this switch offers outstanding resistance to water, dust, shock, and extreme temperatures — making it the ideal solution for industrial automation, transportation systems, and outdoor surveillance deployments.
Built to Withstand Harsh Environments

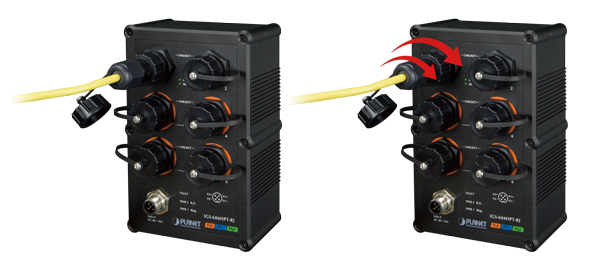

Equipped with four Gigabit PoE+ ports (802.3at, up to 36W per port) and two additional Gigabit RJ45 ports, the IGS-604HPT-RJ supports a total PoE power budget of up to 144W. Its waterproof and dustproof RJ45 connectors, combined with shielded plugs, ensure reliable operation even in the presence of electromagnetic interference or power surges.
High Availability with Dual Power Inpu
The switch features dual 48–56V DC power inputs, ensuring uninterrupted operation through automatic failover. This is crucial for mission-critical applications where uptime is non-negotiable.
Intelligent PoE Management for Surveillance
Specially designed for IP surveillance and security networks, the IGS-604HPT-RJ offers smart PoE features including:

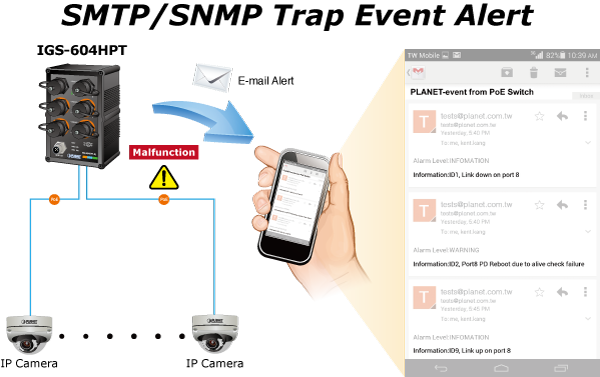

- PD Alive Check – Automatically reboots unresponsive PoE devices
- Scheduled Power Recycling – Reboots devices on a weekly schedule
- SMTP/SNMP Trap Alerts – Notifies administrators of network anomalies
- PoE Scheduling – Reduces energy usage during off-peak hours
These features reduce maintenance efforts while maximizing network reliability and operational efficiency.
Advanced Networking Capabilities
Supporting both IPv6 and IPv4 dual stack, the IGS-604HPT-RJ offers Layer 3 static routing and robust VLAN management. Redundant ring technologies, including ITU-T G.8032 ERPS and MSTP, ensure ultra-fast recovery (as low as 20ms), essential for factory automation and real-time systems.
The switch also includes:
- Layer 2 to Layer 4 ACLs for enhanced network security
- QoS for optimized traffic flow in VoIP and video streaming
- IGMP/MLD Snooping, DHCP Snooping, and ARP Inspection
Easy and Secure Management
With an intuitive web-based GUI, SNMP support, and CLI with Cisco-like commands, managing the IGS-604HPT-RJ is streamlined and flexible. For secure administration, it includes SSH, SSL, and SNMPv3 encryption protocols.
