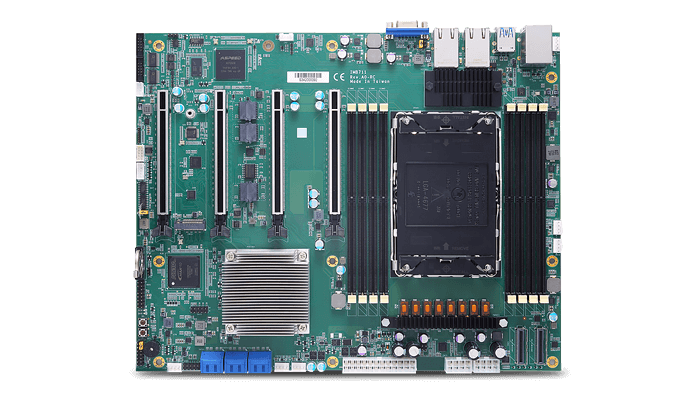

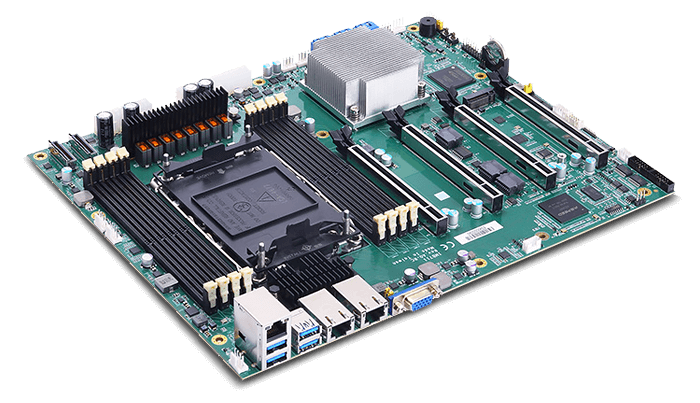

Axiomtek has announced the release of a new ATC server CPU board – IMB711, with support for Intel Xeon Scalable 5th/4th generation CPU. Thanks to the Intel C741 chipset, IMB711 mainboard provides high level of computing power, extended selection of next generation I/O interfaces and corporate-level reliability, making it an effective solution for AI tasks, server platforms and medical systems.
Key features of the IMB711:
- Support for 4th and 5th Generation Intel Xeon Scalable processors
- 8 DDR5-5200 ECC RDIMM slots
- 4 PCIe Gen5 x16 expansion slots
- 2 10GbE LAN ports and 1 dedicated IPMI LAN port
- Support for TPM 2.0
- Backup BIOS and integrated BMC
High-performance computing based on Xeon architecture for mission-critical and medical AI applications
With support for modern Intel Xeon Scalable processors with TDP up to 270 W, the IMB711 platform offers a powerful and stable computing foundation for the future of medicine. The solution efficiently handles the most resource-intensive tasks, including high-precision CT and MRI reconstruction and advanced X-ray imaging systems for radiation therapy. Whether the system is used for 3D surgical modeling or robotic interventions, IMB711 Increases the speed of medical imaging processing, ensuring stable operation and continuous 24/7 operation.
Highest performance and extensive scalability
The new IMB711 processor board comes with eight DDR5 ECC RDIMM slots, supporting frequencies up to 5200 MHz, provide fast and reliable data processing for virtualization, analytics, AI inference, and edge computing. ECC memory support improves data integrity and system stability, which is especially important for enterprise and medical environments. The board supports up to four PCIe Gen5 x16 expansion slots, allowing for the flexible integration of powerful graphics cards, video capture cards, and AI accelerators. An M.2 Key M slot is also provided for high-bandwidth NVMe drives, accelerating access to large AI models and intensive medical imaging workloads.
Compliance with medical standard IEC 60601-1
IMB711 was designed to meet the requirements of the international standard IEC 60601-1, simplifying its implementation in medical systems. This architecture ensures compatibility with medical peripherals, power supplies, and enclosures, helping developers meet stringent safety and electromagnetic compatibility requirements.
Extensive remote control capabilities and security features
A backup BIOS, an integrated BMC controller, a dedicated IPMI-LAN port, TPM 2.0 support, and advanced hardware monitoring tools ensures high system availability and fault tolerance. These features also enable effective remote management, which is especially important for medical, industrial, and server solutions that operate 24/7 without downtime.
