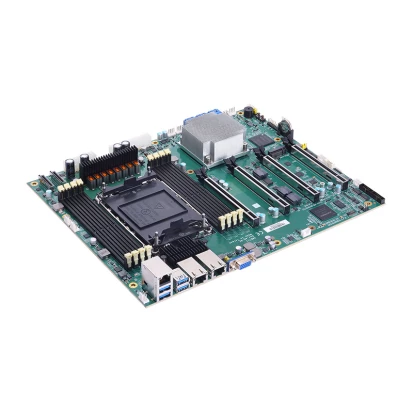

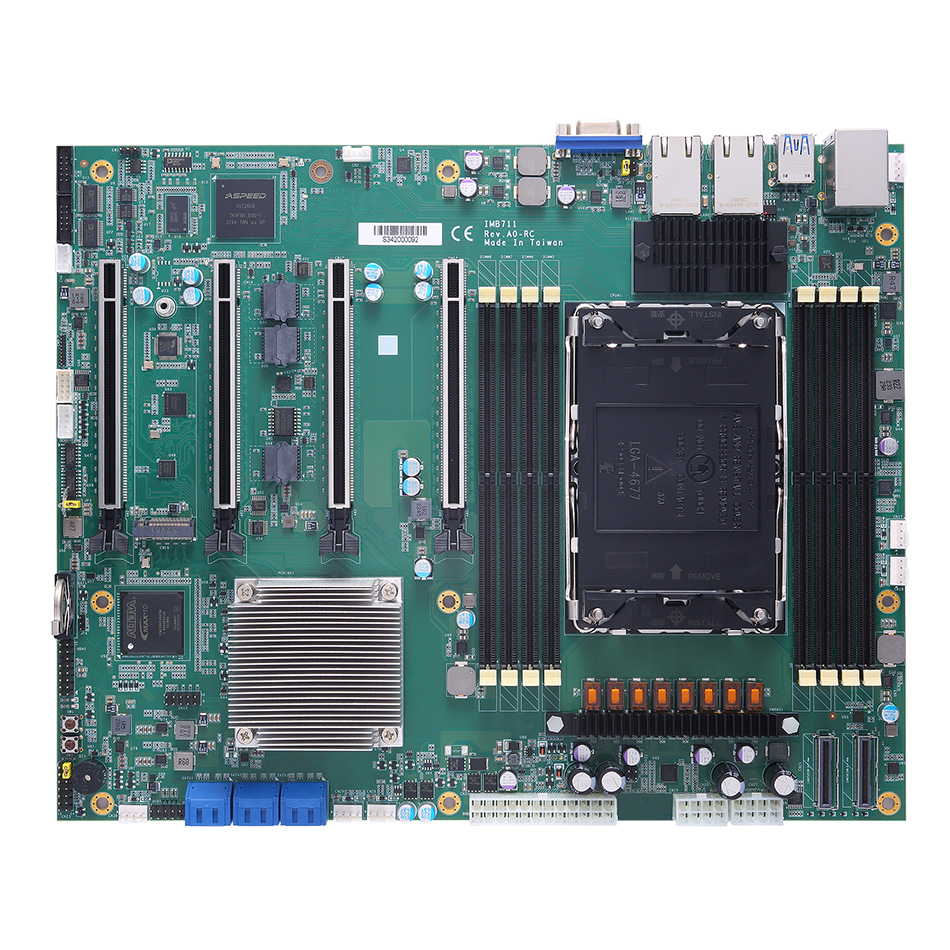

IMB711

IMB711

AXIOMTEK
SKU: 80216500
ATX Motherboard, LGA4677 Socket, Intel Xeon 4/5th Gen Scalable CPU, Intel C741, Up to 512 DDR5 RDIMM ECC RAM, VGA, 2x10GbE LAN, 1xIPMI GbE LAN, 4xUSB 3.2, 2xUSB 2.0 Int., 2xCOM Int., 8-bit DIO, 6xSATA, 1xM.2 Key-M, 2xMCIO x8, 4xPCIe x16, TPM 2.0
Price on request
Available
Available
System Architecture
Form Factor
ATX
CPU
CPU Support Type
Xeon
Socket
LGA4677
Chipset
Chipset
Intel C741
Memory
Form-factor
DDR5
Socket Type
8xDIMM
ECC
Yes
Maximum Memory
512 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST2600
Interfaces
VGA
Ethernet
Controller Type
Intel X550-AT2, Realtek RTL8211F
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
6
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
5
PCI Express x16
4
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xUSB 2.0, 10-pin DIO, 24-pin ATX, 8-pin ATX
Connectors
DB15 VGA, 3xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows Server 2022, Ubuntu 22.04
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
System Architecture
Form Factor
ATX
CPU
CPU Support Type
Xeon
Socket
LGA4677
Chipset
Chipset
Intel C741
Memory
Form-factor
DDR5
Socket Type
8xDIMM
ECC
Yes
Maximum Memory
512 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST2600
Interfaces
VGA
Ethernet
Controller Type
Intel X550-AT2, Realtek RTL8211F
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
6
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
5
PCI Express x16
4
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xUSB 2.0, 10-pin DIO, 24-pin ATX, 8-pin ATX
Connectors
DB15 VGA, 3xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows Server 2022, Ubuntu 22.04
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
System Architecture
Form Factor
ATX
CPU
CPU Support Type
Xeon
Socket
LGA4677
Chipset
Chipset
Intel C741
Memory
Form-factor
DDR5
Socket Type
8xDIMM
ECC
Yes
Maximum Memory
512 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST2600
Interfaces
VGA
Ethernet
Controller Type
Intel X550-AT2, Realtek RTL8211F
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
6
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
5
PCI Express x16
4
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xUSB 2.0, 10-pin DIO, 24-pin ATX, 8-pin ATX
Connectors
DB15 VGA, 3xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows Server 2022, Ubuntu 22.04
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
System Architecture
Form Factor
ATX
CPU
CPU Support Type
Xeon
Socket
LGA4677
Chipset
Chipset
Intel C741
Memory
Form-factor
DDR5
Socket Type
8xDIMM
ECC
Yes
Maximum Memory
512 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST2600
Interfaces
VGA
Ethernet
Controller Type
Intel X550-AT2, Realtek RTL8211F
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
6
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
5
PCI Express x16
4
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xUSB 2.0, 10-pin DIO, 24-pin ATX, 8-pin ATX
Connectors
DB15 VGA, 3xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows Server 2022, Ubuntu 22.04
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
Documentation
IMB711-Datasheet.pdf
Documentation
IMB711-Datasheet.pdf
Documentation
IMB711-Datasheet.pdf
Documentation
IMB711-Datasheet.pdf
