Axiomtek has presented a new compact AI accelerator, the AIE900B-ONX, based on the NVIDIA Jetson Orin NX 16GB Super processor. The device delivers performance of up to 157 trillion operations per second. This product represents a significant improvement over the previous AIE900-XNX model, offering increased computing power and improved performance.

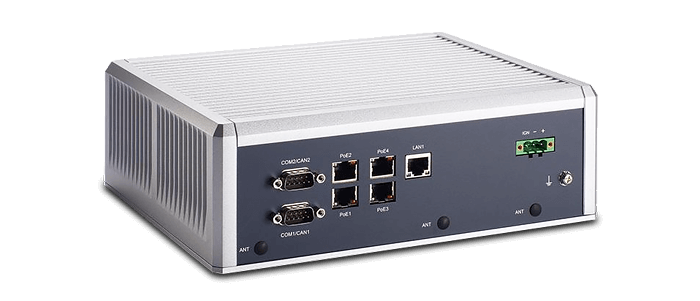

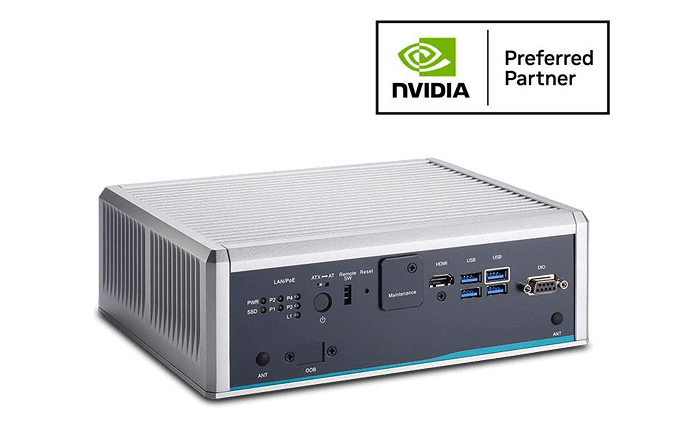

AIE900B-ONX
Key features:
- CPU: Octa-core Arm Cortex-A78AE with 2+4 MB cache
- GPU: Ampere with 1024 cores and support for 32 Tensor Cores
- RAM: 16 GB LPDDR5
- Supported communication interfaces: Five Ethernet ports and two serial ports (RS-232/422/485/CAN)
- Expanded connectivity: Support for Wi-Fi, LTE, and 5G networks
- Compatible with Linux Ubuntu version 22.04 and above
- High-quality design: The aluminum chassis and steel frame provide IP40 protection
Comparison table of the AIE900B-ONX and AIE900-XNX models:
|
odel name |
AIE900B-ONX |
AIE900-XNX |
|
AI performance |
Up to 157 TOPS |
21 TOPS |
|
CPU cores |
8 |
6 |
|
CPU core type |
Arm Cortex-A78AE |
NVIDIA Carmel ARM v8.2 |
|
CPU cache memory |
2MB L2 + 4MB L3 |
6MB L2 + 4MB L3 |
|
GPU cores |
1024 |
384 |
|
GPU tensor cores |
32 |
48 |
|
GPU architecture |
Ampere |
Volta |
|
RAM |
16 GB LPDDR5 |
8 or 16 GB LPDDR4x |
|
Image output |
HDMI 2.1 |
HDMI 2.0 |
|
COM interfaces |
2 x DB9 (RS-232/422/485/CAN) |
|
|
USB ports |
4 x USB 3.2 Gen2 |
2 x USB 3.2 Gen2 + Micro USB |
|
Ethernet connectivity |
5 x 10/100/1000 Mbps (4xPoE) |
|
|
Storage |
M.2 Key M format 2280 NVMe SSD |
Onboard 16GB eMMC + M.2 key M format 2280 NVMe SSD + Micro SD Slot |
|
Expansion slots |
M.2 Key B format 3042/3052, Full Size PCIe Mini Card slot, Nano SIM |
|
|

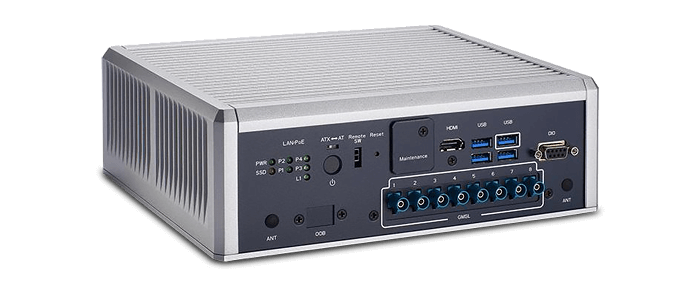

GMSL |
8 x Fakra-Z connector for GMSL1/GMSL2 cameras (Optional) |
- |
|
MIPI CSI |
- |
MIPI CSI-2 with the ability to install four FPD-Link III connectors (Optional) |
|
Digital I/O |
8-CH DI/DO |
|
|
Operational temperature |
From -25°C to +70°C |
From -30°C to +60°C |
|
Dimensions (mm) |
239 × 185.3 × 79.4 |
|
|
Power |
9-36 VDC |
|
|
OS support |
Ubuntu 22.04 and later |
Ubuntu 18.04 and later |
|
Конфигурации |
||
The new AIE900B-ONX model significantly improves on its predecessor in performance and functionality, opening up new opportunities for implementing AI-based solutions in industry, medicine, transportation, and security systems. Its improved hardware architecture and compatibility with modern operating systems make it a promising solution for projects requiring high-performance computing and rapid decision-making in real time.
