LEX SYSTEM has presented the advanced C1870CW embedded single-board system, designed for applications requiring high performance and maximum functionality..
CI870CW

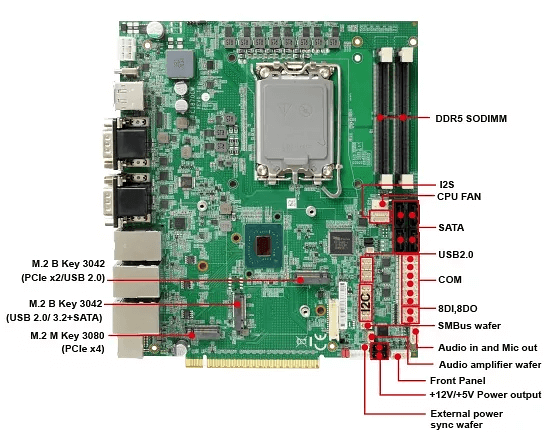

Key features of the CI870CW:
Lex form factor with dimensions of 186x217 mm
Computing power:
- 15th Generation Intel Core i7/i5 CPU (Arrow Lake-S)
- Up to 64 GB of DDR5 SO-DIMM RAM
Graphics:
- Integrated Intel UHD Graphics delivers high-quality visuals and support for multiple independent displays.

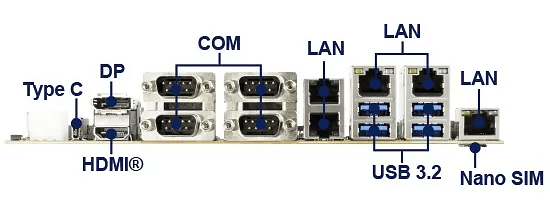

- Display interfaces: HDMI, DisplayPort, eDP/LVDS, Type-C
Ethernet:
- Five 2.5 Gigabit Intel I226-IT network interfaces
Video interfaces:
- HDMI, DisplayPort, eDP/LVDS, Type-C
I/O interfaces:
- USB: four USB 3.2 Gen 1 ports, four USB 2.0 ports, one Type-C port
- Serial port: ten RS232/422/485 outputs (four external, six internal)
Storage:
- Four SATA 3.0 slots,one M.2 M-key slot with NVMe support
Audio:
- Realtek ALC888s dual-channel Class D audio amplifier
Expansion slots:
- Two M.2 B-key slots for additional USB and SATA installation, a PCIe x16 slot and a Nano SIM slot.
OS compatibility:
- Windows 10/11 (64-bit), Linux Ubuntu 22.04, Kernel 5.15
Power:
- Wide input voltage range from 9 to 36 VDC.
Application:
- Robotic systems in industrial facilities;
- Smart cameras and sensors at large real estate and infrastructure facilities;
- Real-time data analysis and building AI models to optimize business processes;
- Autonomous vehicles and mobile service stations.
The LEX SYSTEM C1870CW will become an indispensable tool for those companies that strive to implement modern technologies in production, ensure high quality products and speed up the processes of equipment maintenance and repair.
