8 to 16 PoE 2.5G Ports: Axiomtek’s new UST520 system as a high-speed video surveillance hub for transportation

The embedded systems market for transportation is undergoing an interesting transformation. Whereas onboard computers used to be limited to GPS tracking and route display, today they function as full-fledged servers for AI processing, video surveillance, and telemetry. Axiomtek has introduced the UST520 — a fanless system that blurs the line between a rugged industrial controller and a powerful workstation.

The new model is positioned as a solution for in-vehicle intelligent surveillance.

Architecture:

Axiomtek engineers moved away from compromise soldered CPUs in favor of an LGA1700 socket. This allows the UST520 to support powerful desktop Intel Core processors from the 12th, 13th, and 14th generations.

To unlock the potential of desktop processors in a compact chassis, a high-efficiency passive cooling system was developed, supporting CPUs with a TDP of up to 65 W.

Combined with support for DDR5-4800 memory up to 64 GB, the system becomes a standalone server for Edge AI, capable of analyzing high-resolution video in real time without the need to transmit gigabytes of data to remote servers.

Communications and video surveillance:

The most notable feature of the UST520 is its network subsystem, optimized for connecting multiple cameras. Axiomtek engineers implemented a flexible I/O window design, enabling three device variants with different port configurations:

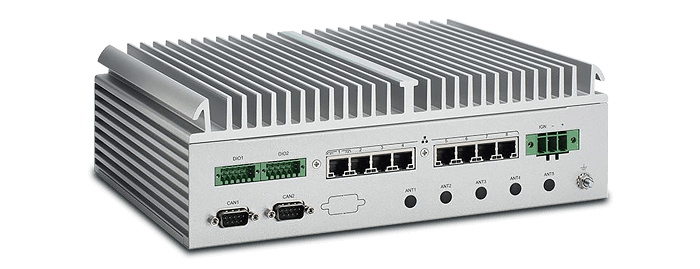

1. Classic version: 8 RJ-45 ports with PoE support.

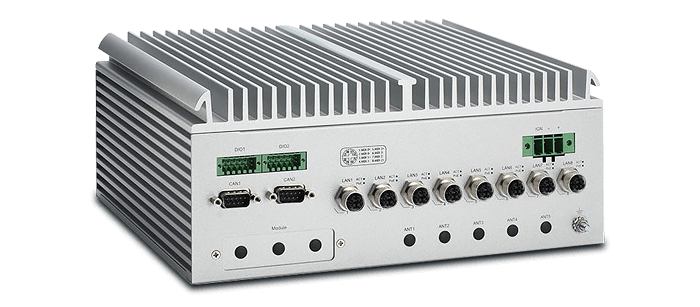

2. Rugged version: 8 M12 X-code ports.

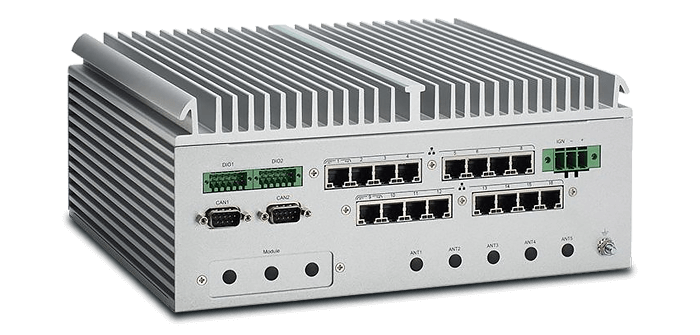

3. Scalable version: Up to 16 RJ-45 PoE ports.



All ports operate at 2.5 Gbps, providing massive bandwidth for high-resolution IP cameras. The total PoE power budget can reach 120 W, supporting both 802.3af (15.4 W) and 802.3at (30 W) standards.

Storage:

For video recording systems, archive capacity and reliability are critical. The UST520 offers convenient drive slots with hot-swappable capability.

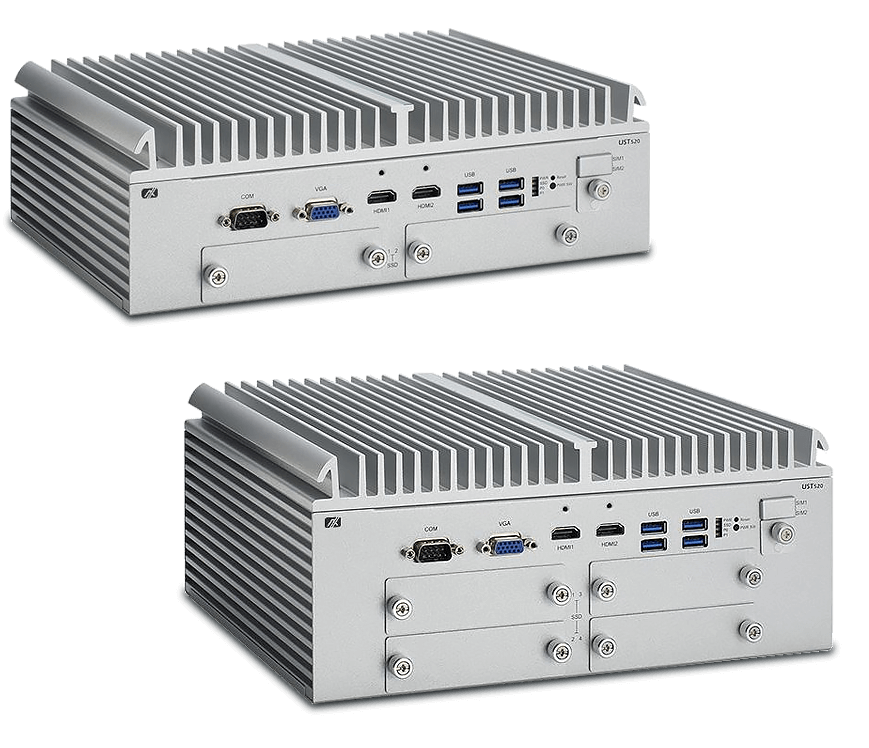

• Depending on the configuration, 2 or 4 bays are available for 2.5-inch SATA drives.
• All current RAID levels are supported: 0, 1, 5, and 10, allowing flexible optimization between speed and storage reliability.

Additionally, there is an M.2 Key M slot (2280/2242) with a PCIe x4 interface for installing ultra-fast NVMe SSDs for the operating system and applications.

Ruggedness, power requirements and operational environment

The device is designed to operate under harsh conditions:

• Temperature range: from -40°C to +70°C
• Vibration resistance: The system withstands vibrations up to 3 Grms (with SSD), as verified by certifications.
• Certification: The device carries E-Mark certification and UN R118 approval (fire resistance of materials), which are mandatory for installation in public transport in many countries.

Smart power: The system operates over a wide input voltage range from 12 to 48 V DC. One key feature is Smart Ignition, which protects the vehicle’s battery from deep discharge: the computer shuts down properly when the engine is turned off, with a configurable delay.

Applications: What can you do with the UST520?

Thanks to the combination of a powerful CPU, multiple PoE ports, and E-Mark certification, the device’s range of applications goes far beyond a standard video recorder.

1. Public transport (buses and trams):
• A single server for fare processing, managing information displays, and recording from security cameras.
• AI-powered real-time passenger counting.
2. Special vehicles (police and ambulances):
• Patrol vehicles can use the UST520 for automatic license plate (ANPR) and facial recognition in real time, leveraging the power of 14th-generation Intel Core processors.
• Ambulances benefit from reliable telemetry and hospital communication via 5G/LTE modules (supported through M.2 and SIM slots).
3. Logistics and freight transport:
• Fleet management, driver condition monitoring, and blind spot monitoring of trucks using high-resolution cameras.
4. Rail transport:
• Although focused on the automotive market, the specifications (M12 connectors, wide temperature range) make it suitable for passenger information systems and video surveillance in train cars.

Table of Standard Configurations

The Axiomtek UST520 exemplifies how modern security system requirements are driving hardware forward. It is no longer just an industrial PC, but a full-fledged Edge AI server in a rugged enclosure. Support for the latest Intel processors and DDR5 memory provides years of performance headroom, while the modular design with selectable ports (RJ-45 or M12) gives integrators the flexibility they need. The only potential drawbacks may be the price and power consumption of high-end configurations, but for mission-critical applications, these factors often take a back seat.
