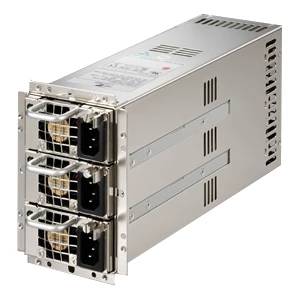

ZIPPY R3G-5800V4V
ZIPPY
SKU: 07458400
N+1 Redundant AC Input 800+800W ATX Industrial Power Supply, with Active PFC, RoHS
Price on request
Available
Available
Power Supply
Type of Power Supply
Industrial, Triple-Redundant, 2U, ATX, (N+1) Power Bank
Output Power
800 W
Quantity of Power Modules
3
Type of input voltage
AC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
3xAC Input
Dimensions and weight
Width
127 mm
Height
82 mm
Depth
276 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, EN 61000-3-2, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Safety
CCC, UL, cUL, TUV
Dimensions
Gross Weight
5 kg
