ZIPPY R1M-6251P
ZIPPY
SKU: 05992500

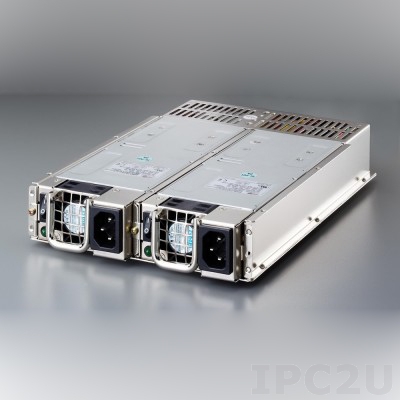

1U Redundant AC Input 250W ATX Industrial Power Supply, EPS12V, with Active PFC
Price on request
Available
Available
Power Supply
Type of Power Supply
Industrial, Redundant, 1U, ATX
Output Power
250 W
Quantity of Power Modules
2
Type of input voltage
AC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
2xAC Input
Dimensions and weight
Width
180 mm
Height
40.6 mm
Depth
260 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
FCC Class B
Safety
UL, TUV, CSA
Dimensions
Gross Weight
3.5 kg
