ZIPPY M1X2-5700V0V
ZIPPY
SKU: 07404000

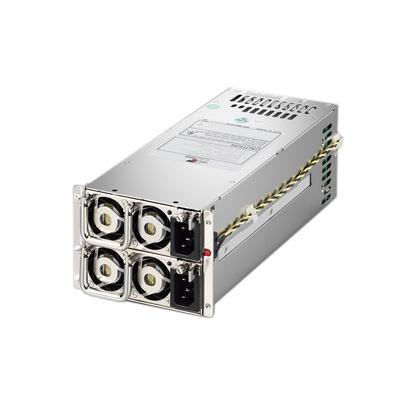

2U Redundant ATX Input 700W Industrial Power Supply, 80 Plus Silver
Price on request
Available
Available
Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
700 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
36..72 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
101 mm
Height
84 mm
Depth
240 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC Class A
EMI
EN 55022 Class A, EN 61000-3-2
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
CCC, CB, UL, cUL, TUV
Dimensions
Gross Weight
4 kg
