ZIPPY M1W2-5700G0V

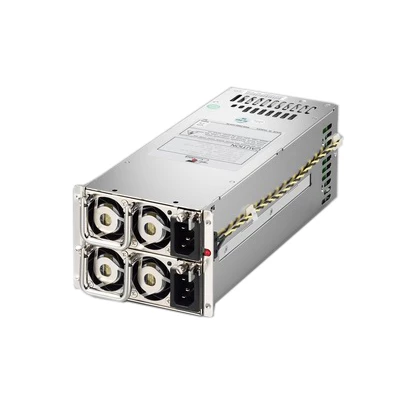

ZIPPY M1W2-5700G0V

ZIPPY
SKU: 07265500
2U Redundant AC Input 700+700W ATX Industrial Power Supply, with Active PFC, RoHS
Price on request
Available
Available

Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
700 W
Quantity of Power Modules
2
Type of input voltage
AC
Output Voltage DC
-12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
DC Input
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
EMI
EN 55022, EN 61000-3-2
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Safety
CCC, UL, cUL, TUV
Dimensions
Gross Weight
5 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
700 W
Quantity of Power Modules
2
Type of input voltage
AC
Output Voltage DC
-12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
DC Input
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
EMI
EN 55022, EN 61000-3-2
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Safety
CCC, UL, cUL, TUV
Dimensions
Gross Weight
5 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
700 W
Quantity of Power Modules
2
Type of input voltage
AC
Output Voltage DC
-12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
DC Input
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
EMI
EN 55022, EN 61000-3-2
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Safety
CCC, UL, cUL, TUV
Dimensions
Gross Weight
5 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
700 W
Quantity of Power Modules
2
Type of input voltage
AC
Output Voltage DC
-12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
DC Input
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
EMI
EN 55022, EN 61000-3-2
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Safety
CCC, UL, cUL, TUV
Dimensions
Gross Weight
5 kg

Documentation
Datasheet M1W2-5700G0V
Documentation
Datasheet M1W2-5700G0V
Documentation
Datasheet M1W2-5700G0V
Documentation
Datasheet M1W2-5700G0V
