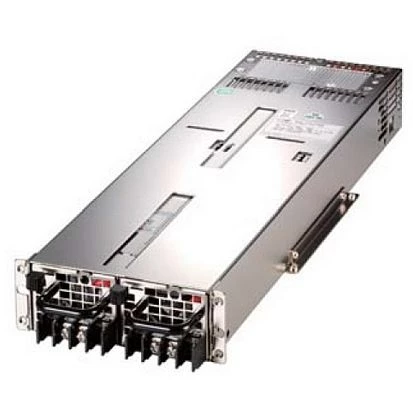

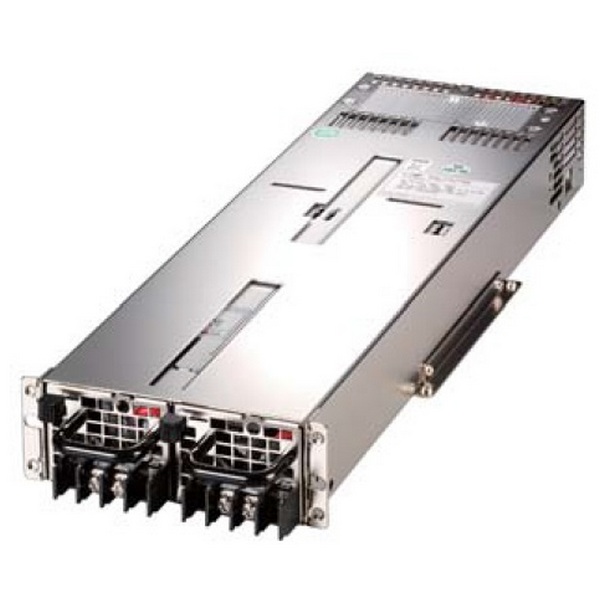

ZIPPY BM1U2-5500V4H

ZIPPY
SKU: 07340700
1U Redundant DC Input 500W Industrial Power Supply, RoHS
Price on request
Available
Available

Power Supply
Type of Power Supply
Industrial, Redundant, 1U, ATX
Output Power
500 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
106 mm
Height
41.3 mm
Depth
355 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
FCC
EMI
CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 1U, ATX
Output Power
500 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
106 mm
Height
41.3 mm
Depth
355 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
FCC
EMI
CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 1U, ATX
Output Power
500 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
106 mm
Height
41.3 mm
Depth
355 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
FCC
EMI
CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 1U, ATX
Output Power
500 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
106 mm
Height
41.3 mm
Depth
355 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
FCC
EMI
CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg

Documentation
Datasheet BM1U2-5500V4H
Documentation
Datasheet BM1U2-5500V4H
Documentation
Datasheet BM1U2-5500V4H
Documentation
Datasheet BM1U2-5500V4H
