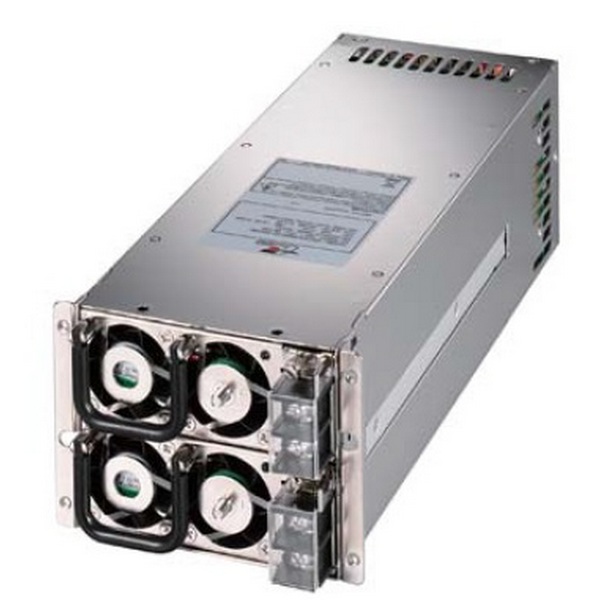

ZIPPY BG1W2-5600V3V

ZIPPY BG1W2-5600V3V

ZIPPY
SKU: 07340600
2U Redundant DC Input 600W Industrial Power Supply, RoHS
Price on request
Available
Available

Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
600 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC
EMI
EN 61000-3-2, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
600 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC
EMI
EN 61000-3-2, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
600 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC
EMI
EN 61000-3-2, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg
Power Supply
Type of Power Supply
Industrial, Redundant, 2U, ATX
Output Power
600 W
Quantity of Power Modules
2
Type of input voltage
DC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
19..36 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
101.2 mm
Height
84 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC
EMI
EN 61000-3-2, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Gross Weight
4 kg

Documentation
Datasheet BG1W2-5600V3V
Documentation
Datasheet BG1W2-5600V3V
Documentation
Datasheet BG1W2-5600V3V
Documentation
Datasheet BG1W2-5600V3V
