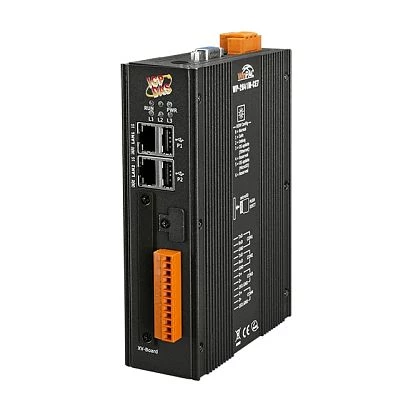

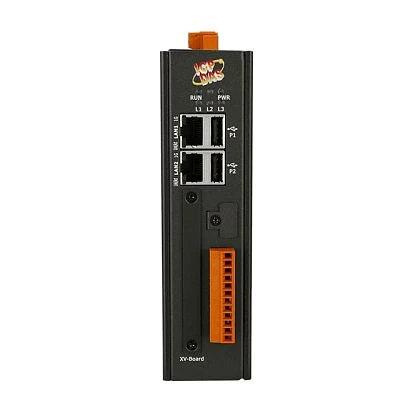

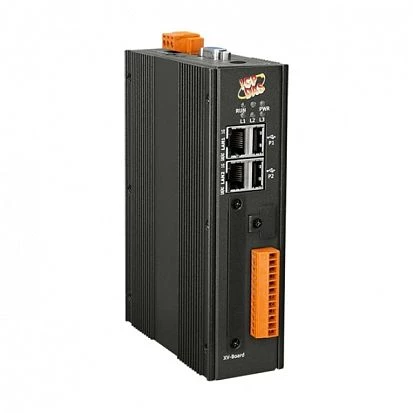

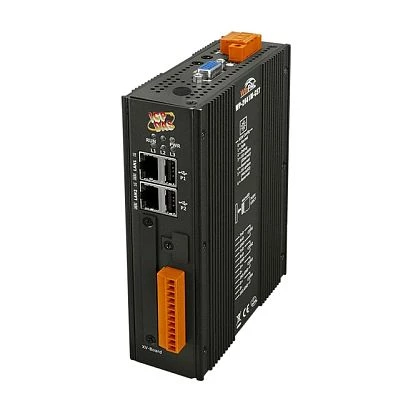

WP-2641M-CE7
ICP DAS
SKU: 09205600
PC-compatible Cortex-A9 1.0 GHz Industrial Controller, 1GB DDR3 SDRAM, 8GB eMMC Flash, 2xUSB, 2xEthernet, 2xRS-232, 2xRS-485, 1 I/O Bus, Windows CE 7.0, MicroSD w/o spftware, with set to attach cables
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

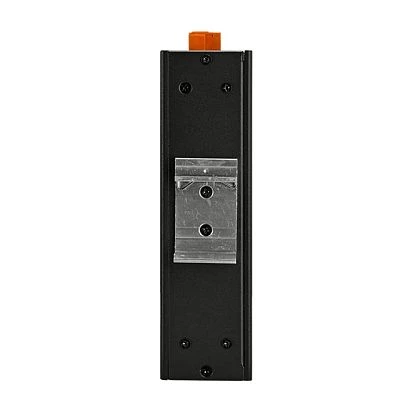

DIN-Rail mount
Protection Level of Chassis
IP30
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Memory
Default on Board Memory
1 GB
SRAM
16 kB
Installed drive
Flash Memory Capacity
4 MB
MRAM Memory Capacity
128 kB
Drive interfaces
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Windows CE 7.0
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
2
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces

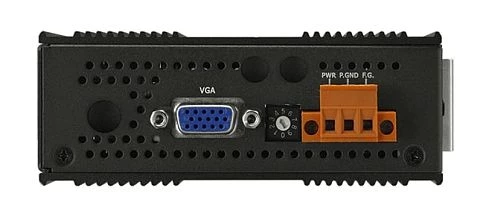

VGA
Dimensions and weight
Width
35 mm
Depth
119 mm
Height
168 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.5 kg
Construction
