W24IK7T-IPA2/PAT

W24IK7T-IPA2/PAT

Winmate
SKU: 56538900

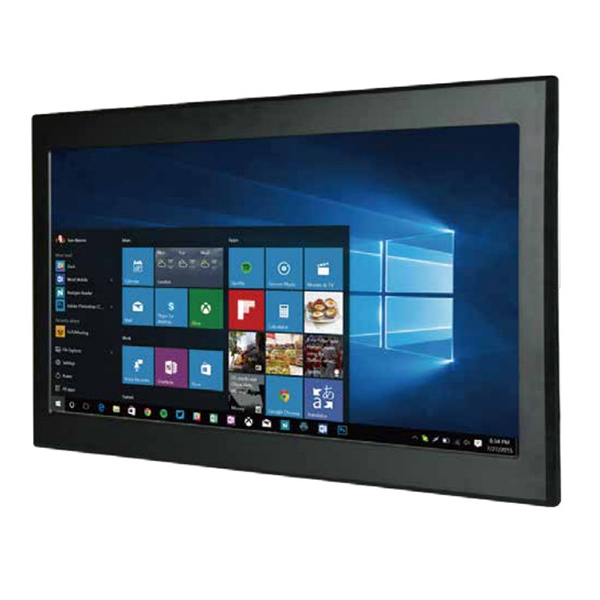

Panel Computer 23.8", 1920x1080, resistive touch, Intel Core i7-7700T 2.9GHz CPU, 4GB RAM, 64GB SSD M.2, 2xCOM, 2xGbE LAN, 4xUSB 3.0, 1xDP 1.2, 1xHDMI 1.4, Audio, power input 12V DC, IP65 front panel
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i7-7700T
Socket
CPU onboard
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Extension Slots
Total
1
PCI Express x16
1
System Power Input
Input Voltage DC
12..12 V
Power Consumption
93 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
606 mm
Height
376 mm
Depth
85 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
11 kg
Gross Weight
12.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i7-7700T
Socket
CPU onboard
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Extension Slots
Total
1
PCI Express x16
1
System Power Input
Input Voltage DC
12..12 V
Power Consumption
93 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
606 mm
Height
376 mm
Depth
85 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
11 kg
Gross Weight
12.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i7-7700T
Socket
CPU onboard
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Extension Slots
Total
1
PCI Express x16
1
System Power Input
Input Voltage DC
12..12 V
Power Consumption
93 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
606 mm
Height
376 mm
Depth
85 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
11 kg
Gross Weight
12.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i7-7700T
Socket
CPU onboard
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Extension Slots
Total
1
PCI Express x16
1
System Power Input
Input Voltage DC
12..12 V
Power Consumption
93 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
606 mm
Height
376 mm
Depth
85 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
11 kg
Gross Weight
12.5 kg

Documentation
Datasheet W24IK7T-IPA2/PAT
Documentation
Datasheet W24IK7T-IPA2/PAT
Documentation
Datasheet W24IK7T-IPA2/PAT
Documentation
Datasheet W24IK7T-IPA2/PAT
