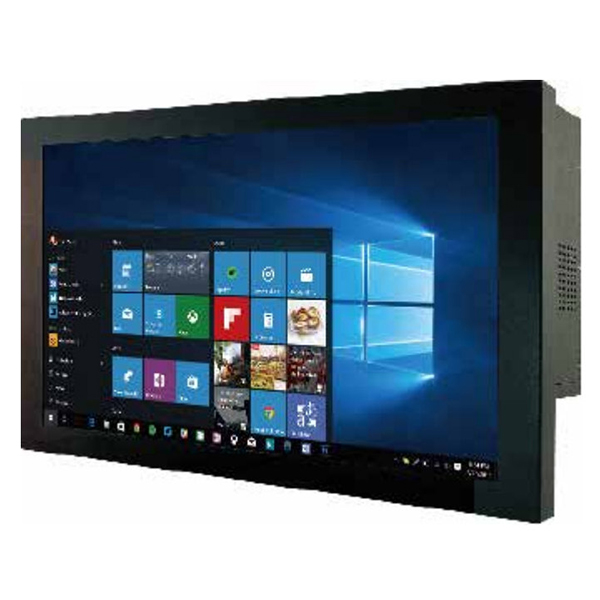

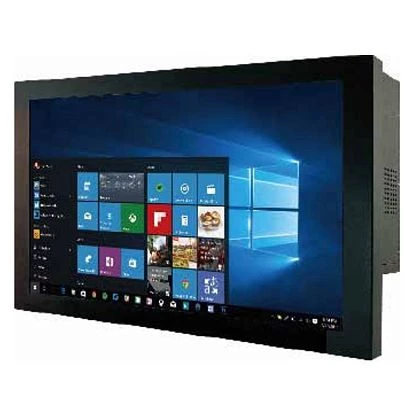

W24IK7T-CHA2/PAT

SKU: 07854400

Panel Computer 23.8", 1920x1080, resistive touch, Intel Core i7-7700T 2.9GHz CPU, 4GB RAM, 64GB SSD M.2, 2xCOM, 2xGbE LAN, 4xUSB 3.0, 1xDP 1.2, 1xHDMI 1.4, Audio, power input 12V DC

Price on request

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

Panel, Wall, Wall VESA 100, Wall VESA 75

Type

Fanless

Display

Display Type

LCD TFT

Diagonal

23.8 "

Maximum resolution

1920x1080 Dots

Aspect Ratio

16:9

Brightness

250 Cd/m2

Contrast Ratio

3000~1

Touch Screen

Touch Screen Type

Resistive

CPU

Processor Installed

Intel Core i7-7700T

Socket

CPU onboard

Max CPU frequency

3.8 GHz

Chipset

Intel Q170

Memory

Form-factor

DDR4

Socket Type

2xSODIMM

Default on Board Memory

4 GB

Maximum Memory

32 GB

Assembly

Removable

Graphic

Graphic Controller

Integrated in CPU

Ethernet

Controller Type

Intel i211-AT 10/100/1000 Mbps, Intel i219-LM

Total Ethernet

10/100/1000 Mbit/s

Interfaces

COM Total

RS-232/422/485

USB Total

USB v3.x

Audio

Audio Controller

Realtek HD Audio Codec

Drive interfaces

M.2

mSATA

Storage Cage

Number Of Cage External

2.5" Cage Intenal

Installed drive

Drive Type

SSD

Storage Form-Factor

M.2

1st Storage Capacity

64 GB

Extension Slots

Total

PCI Express x16

System Power Input

Input Voltage DC

12..12 V

Power Consumption

93 W

Software

Operating System Compatibility

Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry

Dimensions and weight

Width

506.5 mm

Height

302.5 mm

Depth

85 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Certifications

CE, FCC

Dimensions

Net Weight

12 kg

Gross Weight

13 kg
