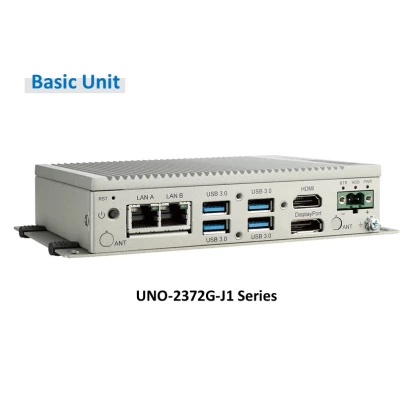

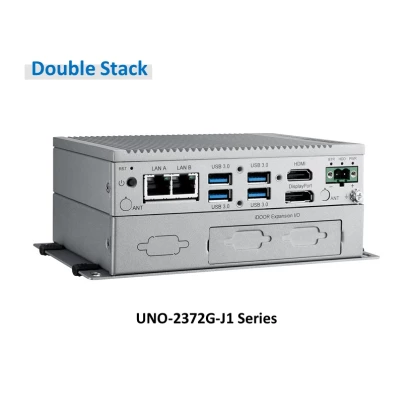

UNO-2372G-J121AE
Advantech
SKU: 10199800
Embedded computer, Intel Celeron J3455, 4GB DDR3L, HDMI/DP, 2xGbE LAN, 4xCOM, 1xUSB 3.0, 3xUSB 2.0, 2x MiniPCIe, 1x2.5" SATA Bay, IP40, -20...+60C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3455
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
SATA 3
1
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 2xRJ45, 4xUSB, Display Port
System Power Input
Input Voltage DC
10..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows 10, Ubuntu 20.04
Dimensions and weight
Width
150 mm
Height
105 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Dimensions
Net Weight
0.8 kg
Gross Weight
1.2 kg
