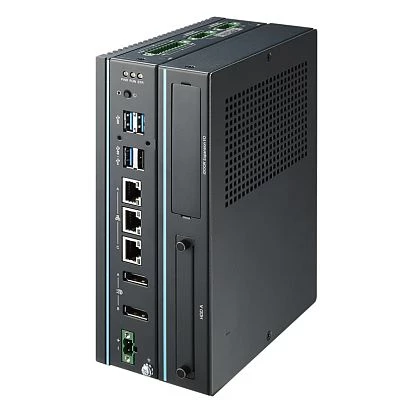

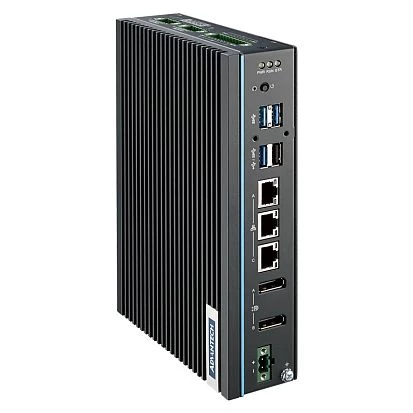

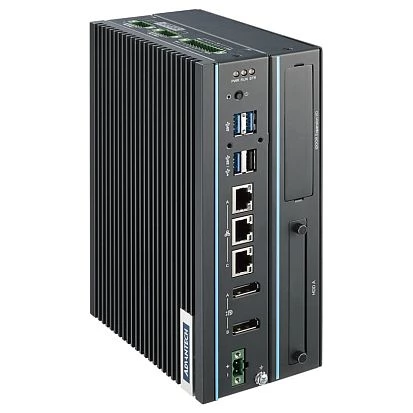

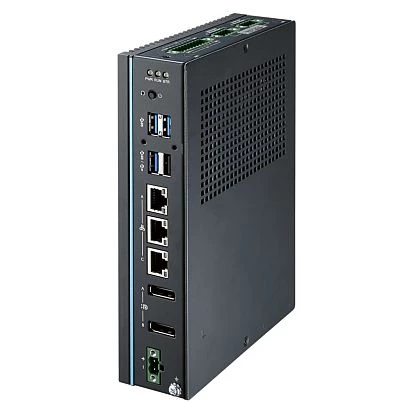

UNO-148-B53BA
Advantech
SKU: 11607300
Fanless DIN-Rail Embedded PC, Intel Core i5-1145G7E, 8GB RAM, 2xDP, 1x2.5GbE LAN, 2xGbE LAN, 4xCOM, 3xUSB 3.2, 1xUSB 2.0, 8xDIO, 10-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP20
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Socket
FCBGA 1449
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xDisplayPort
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM, Intel i225LM
Total Ethernet
3
10/100/1000 Mbit/s
2
2,5 Gbit/s
1
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB 2.0
1
USB v3.x
3
Digital Input-Output
Channels of DIO
8
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Nano SIM
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
3xRJ45, 4xUSB, 2xDisplayPort, 4xCOM (terminal block)
System Power Input
Input Voltage DC
10..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Windows 11, Ubuntu 20.04
Dimensions and weight
Width
45 mm
Height
140 mm
Depth
200 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE/FCC
Safety
CCC, BSMI
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
