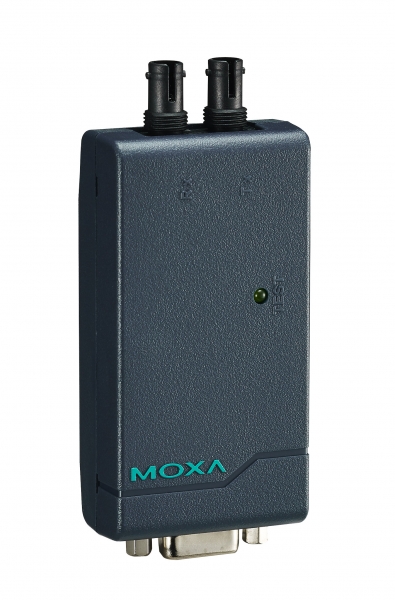

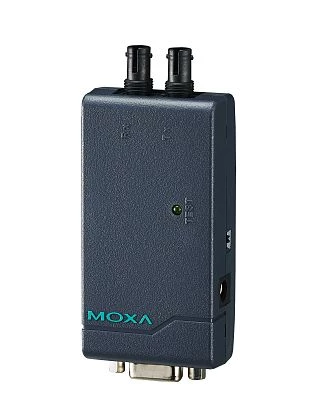

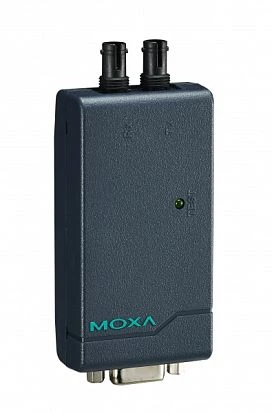

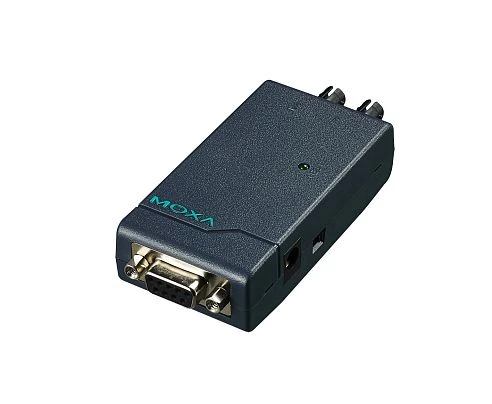

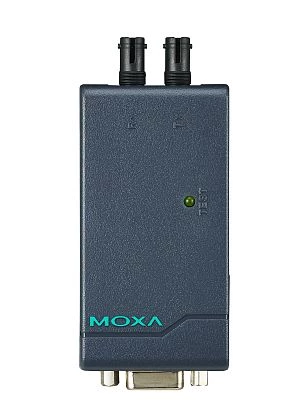

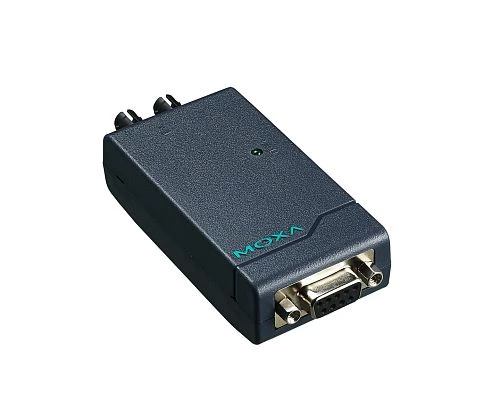

TCF-90-M-ST
MOXA
SKU: 03433800
Serial Port Powered RS-232 to ST Multi-mode Fiber Converter, up to 5 km, Optical Isolation 2.5kV
Price on request
Available
Available
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232
1
System Power Input
Input Voltage DC
5..12 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
42 mm
Depth
22 mm
Height
80 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class B, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.15 kg
Gross Weight
0.15 kg
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232
1
System Power Input
Input Voltage DC
5..12 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
42 mm
Depth
22 mm
Height
80 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class B, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.15 kg
Gross Weight
0.15 kg
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232
1
System Power Input
Input Voltage DC
5..12 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
42 mm
Depth
22 mm
Height
80 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class B, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.15 kg
Gross Weight
0.15 kg
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232
1
System Power Input
Input Voltage DC
5..12 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
42 mm
Depth
22 mm
Height
80 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class B, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.15 kg
Gross Weight
0.15 kg
