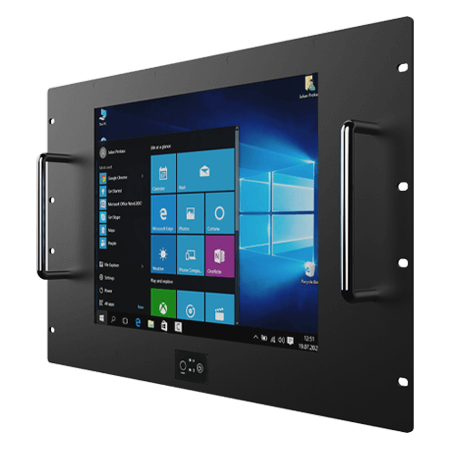

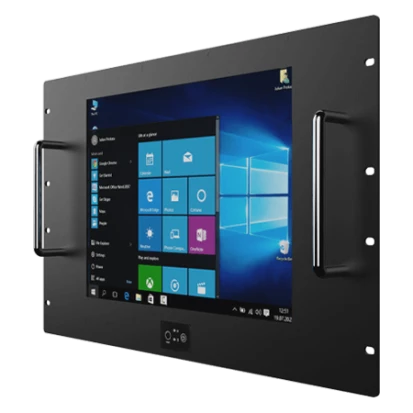

R15IAD7T-RKC3
Winmate
SKU: 57929100
15" Rack Mount Panel PC, 1024x768, 300cd/m2, Resistive Touch Opt., Intel Core i5-12500TE CPU, R680E Chipset, 8GB DDR5 RAM, 128GB NVME SSD, HDMI/DP, 2x2.5GbE LAN, 8xUSB 3.2, 2xCOM, 2xSATA 3, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount, Wall VESA 100, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
300 Cd/m2
Contrast Ratio
2000~1
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-12500TE
Socket
LGA1700
Max CPU frequency
4.3 GHz
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
482 mm
Height
310 mm
Depth
76 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.2 kg
Gross Weight
5 kg
