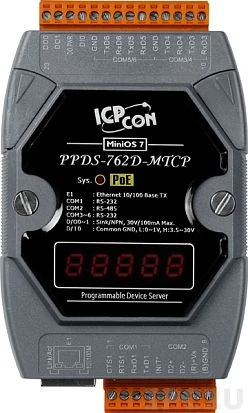

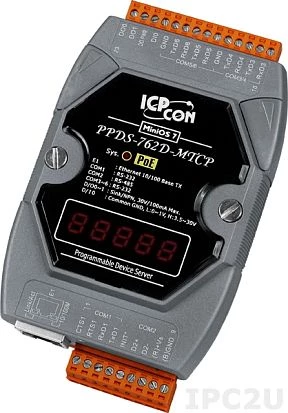

PPDS-762D-MTCP
ICP DAS
SKU: 05761200
Programmable Device Server with PoE, Modbus Gateway, 5 RS-232 ports, 1 RS-485 port and an LED Display (RoHS) Includes One CA-0910 Cable
Price on request
Available
Available
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
6
RS-232
5
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, Modbus ASCII master
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Connectors
Connectors
Screw Terminal
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
