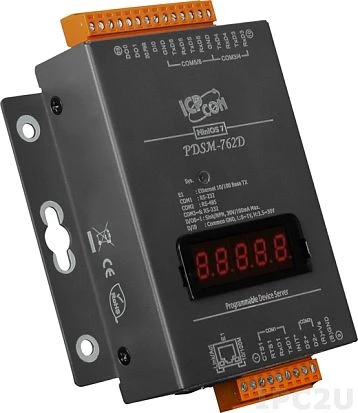

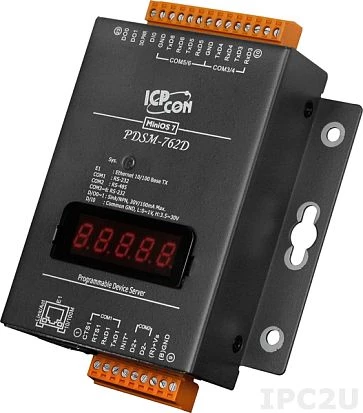

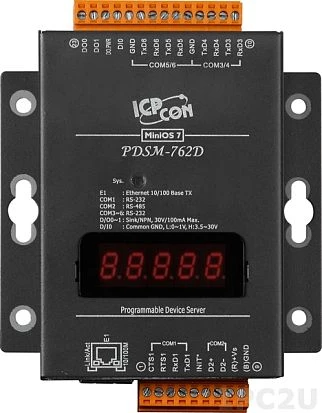

PDSM-762D
ICP DAS
SKU: 05757100
Programmable Device Server with five RS-232 one RS-485 ports and one DI and two DO ports and LED display with Metal Case
Price on request
Available
Available
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
6
RS-232
5
RS-485
1
Digital Input
Total channels of digital input
1
Level of Logic "1"
3.5~30 V
Level of Logic "0"
0~1 V
Type
Wet contact
Digital Output
Total channels of digital output
2
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
88 mm
Depth
28 mm
Height
123 mm
Dimensions
Gross Weight
0.16 kg
