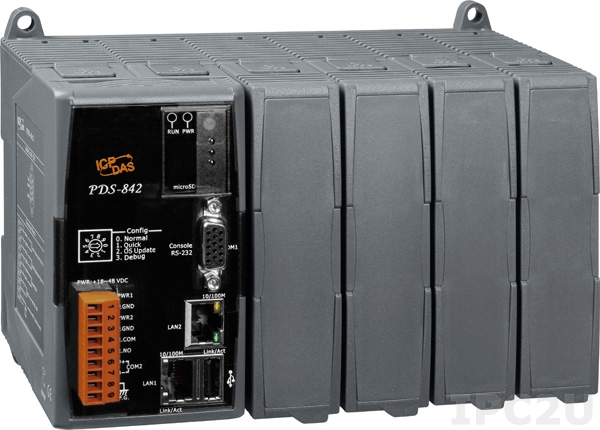

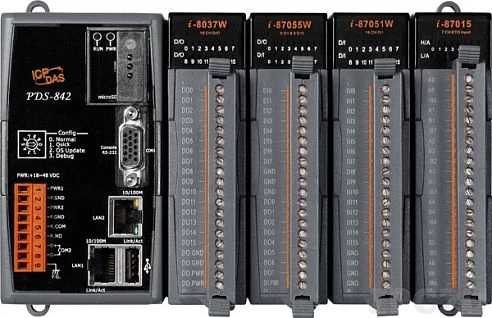

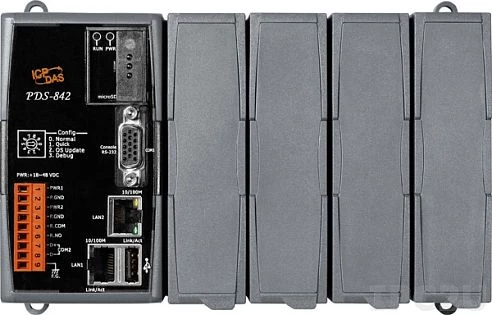

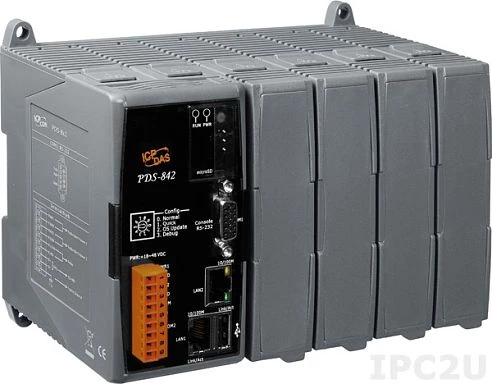

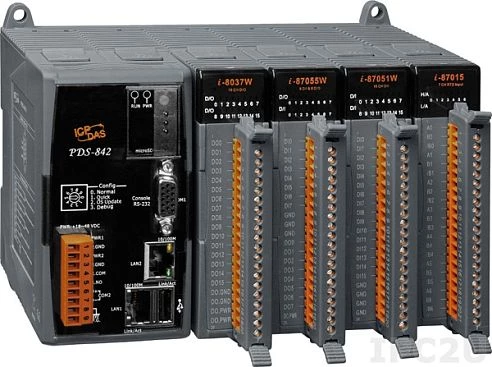

PDS-842

PDS-842

ICP DAS
SKU: 05842100
Programmable Device Server, 2-port Ethernet Switch, 4 Expansion Slots, RoHS
End-of-life product

Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
RS-485
1
Expansion Module
Quantity of Slots
4
Supported Module
I-8K series
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
18..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
188 mm
Depth
111 mm
Height
132 mm
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Ethernet
