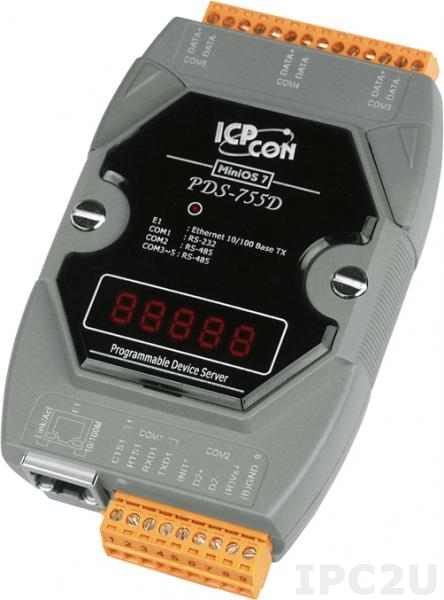

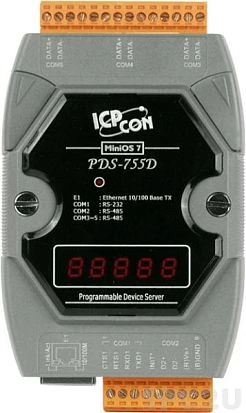

PDS-755D

PDS-755D

ICP DAS
SKU: 05200600
Programmable Device Server, 1xRS-232, 4xRS-485 with LED Display, RoHS
Price on request
Available
Available

Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
1
RS-485
4
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
1
