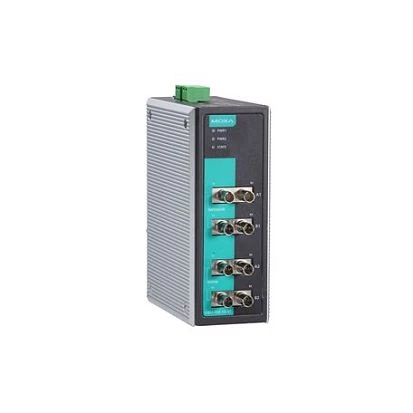

OBU-102-SS-ST
MOXA
SKU: 06190700
2-channel optical fiber bypass unit with 4 single-mode ports, ST, -20 to 70C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
4
10 Gbit/s
4
Type 10 Gbit/s
ST
Fiber
Type of Fibre Optic
single-mode
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.7 kg
Gross Weight
0.88 kg
