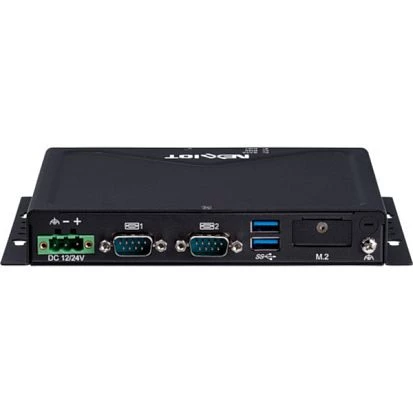

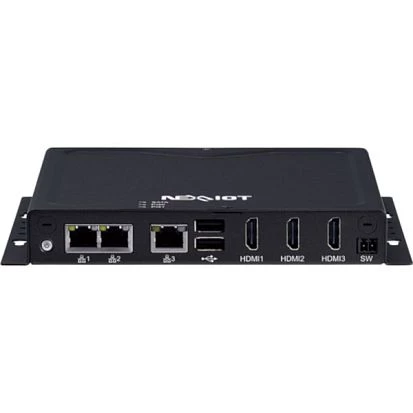

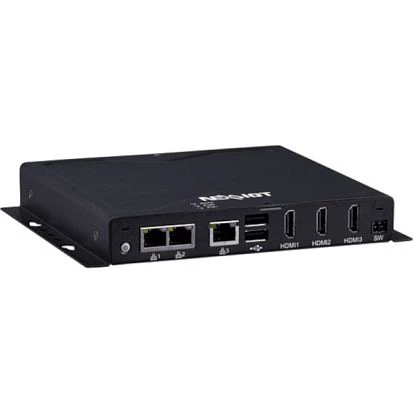

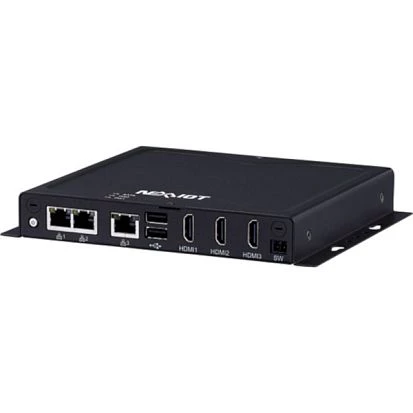

Fanless Embedded System, Intel Atom x6211E 1.3GHz CPU, 1xDDR4 SO-DIMM 2133MHz up to 16GB RAM, 3xHDMI, 3xGbE LAN, 2xCOM, 2xUSB 3.0, 2xUSB 2.0, 1xMiniPCIe, 2xM.2, Nano SIM, GPIO, 12..24VDC-In, -5..55C operating temp.
NISE-53-E02
NEXCOM
SKU: 57348700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Atom x6211E
Socket
CPU onboard
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Nano SIM
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
3xRJ45 Ethernet, 2xUSB, DC input (terminal block), 2xUSB (4-pin), 2xDB9 Male, 3xHDMI
System Power Input
Input Voltage DC
12..24 V
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
162 mm
Height
26 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 2Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.85 kg
Gross Weight
1.4 kg
