NISE-52

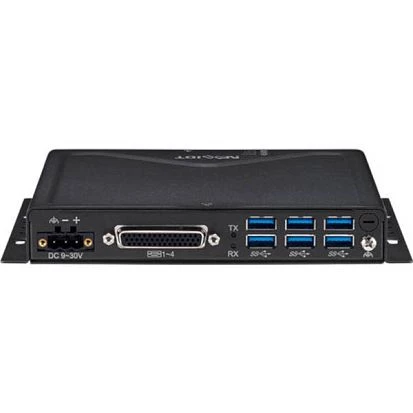

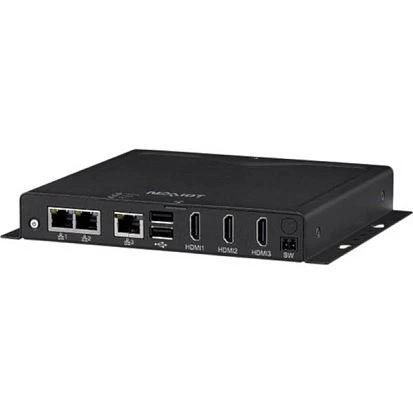

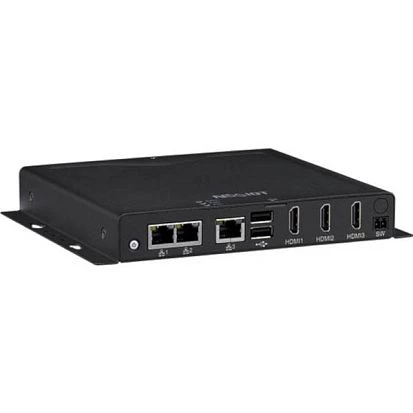

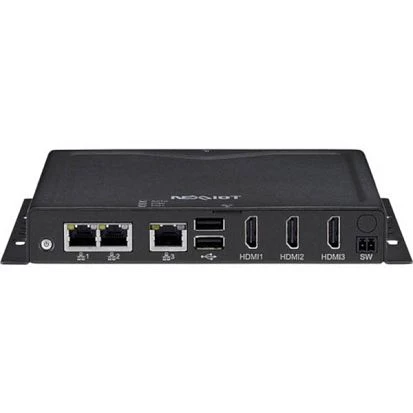

Nexcom NISE-52 IoT Embedded Box PC with Intel Celeron J3455, up to 8GB DDR3L RAM, 2x Mini PCIe, 3x LAN, 8x USB, 4x COM Equipped with an Intel Celeron J3455 processor from theApollo Lake generation and up to 8GB of DDR3L RAM, the Nexcom NISE-52 IoT Embedded Box PC combines high performance with a fanless design and extensive, versatile I/O for connectivity to the network and peripheral devices. The Intel Celeron J3455 Prpzessor used by the IoT Embedded Box PC Nexcom NISE-52 is a quad core CPU that delivers a clock frequency between 1.50GHz as base and 2.30GHz as burst mode with a very low power dissipation of only 10 watts TDP. The memory consists of a maximum of 8GB DDR3L Low Energy RAM on a SO-DIMM socket. The primary storage medium for the IoT Embedded Box PC is a SATA SSD in a slot for Mini PCI Express. Another Mini PCIe slot enables mobile or wireless connectivity to local and global networks via WiFi or LTE WAN. As native interfaces, Nexcom NISE-52 also offers three RJ45 LAN GbE ports, six USB 3.0, three Serial COM RS232/422/485 and single COM RS232, eight GPIO channels and Triple HDMI for connected, cloned or standalone desktops. It is thus a general-purpose IoT embedded box PC suitable for numerous application areas including smart factory, manufacturing and home automation, video surveillance or data processing.
