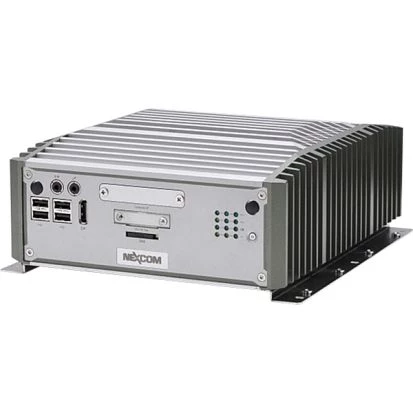

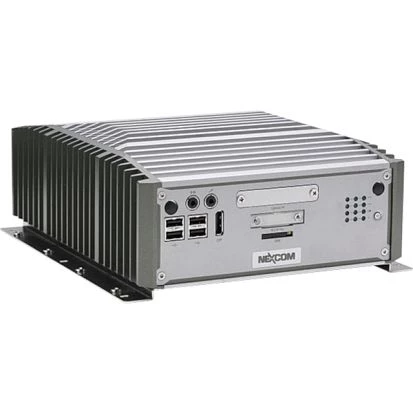

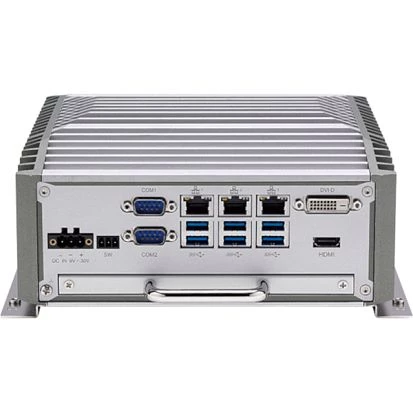

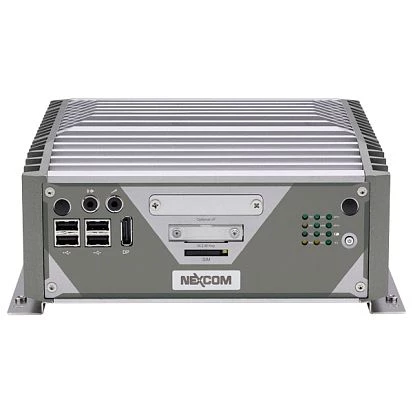

NISE-3900R

Fanless Embedded Server, Support 8th Gen Intel Core i7/i5/i3 CPUs, Intel Q370 Chipset, up to 16GB DDR4, DP, DVI-D, HDMI, 3xGbit LAN, 4xUSB 2.0, 6xUSB 3.1, 2xCOM, Audio, 2x2.5" SATA HDD Bays, M.2, SIM, 9...30V DC-In

Price on request ()
Construction Chassis:
Metal Chassis with Aluminium Heatsink
Mounting Configuration:
Desktop
Processor Supported:
Intel Core i7-8700T, Intel Core i5-8500T, Intel Core i3-8100T
Operating System Compatibility:
Linux OS, Windows 10
Temperature:
-5 ... 55 °C
Specification
Vendor
Name:
NEXCOM
Construction
Construction Chassis:
Metal Chassis with Aluminium Heatsink
Mounting Configuration:
Desktop
CPU
СPU Generation/Family:
Coffee Lake
Processor Supported:
Intel Core i7-8700T, Intel Core i5-8500T, Intel Core i3-8100T
Memory
Memory Type:
DDR4 2400, DDR4 2666
Socket Type:
2xDDR4 SODIMM 260pin
Maximum Memory:
16 GB
ECC:
No
Network Adapter
Controller Type:
Intel i210-IT, Intel i219-LM
Total Ethernet:
3
10/100/1000 Mbit/s:
3
Interfaces
RS-232:
2 (internal)
RS-232/422/485:
2
USB 2.0:
4
USB 3.0:
6
Digital Input-Output
Channels of DIO:
8
GPIO:
4xDigital In / 4xDigital Out
Storage Controllers
SATA 3 Channels:
1
Storage
2.5" Drive Bays:
SSD, HDD
Quantity of HDD:
1
Extension Slots
PCI Express x4:
1
M.2:
1
Additional Functions
Quantity of SIM Card:
1
3G:
Yes
Connectors / Cables
Connectors:
2xDB9, DVI-D, HDMI, 10xUSB, Display Port, SIM Card Slot
System Power Input
Input Voltage DC:
9 ... 30 V
Power Consumption:
10 W
Power Supply
Type of Power Supply:
External power adapter AC/DC
Output Power:
120 W
Software
Operating System Compatibility:
Linux OS, Windows 10
Dimensions and weight
Width:
215 mm
Height:
94 mm
Depth:
272 mm
Operating Conditions
Temperature:
-5 ... 55 °C
Humidity:
10 ... 95 %
Vibration:
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock:
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications:
FCC Class A
Vibration And Shock:
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
EMS:
EN 61000-6-2, EN 61000-6-4
Description of goods

NISE 3900 Fanless Embedded Server, supports 8th generation Intel Core i7/i5/i3 CPU, Intel Q370 PCH chipset, up to 16GB DDR4 RAM, DVI, HDMI, DP, 3xGbE LAN, 4xUSB 2.0, 6xUSB 3.1, 2xCOM, Audio, 2.5" SATA HDD Bay, 2xMini-PCIe, 2xPCIe x4, 9...30 V DC-In


The following configurations of the NISE-3900 series are also available:

ModelChipset & CPUI/O
NISE-3900EIntel Q370PCH, support Intel 8th gen Core i3/i5/i7DVI, HDMI, 2x GbE LAN, 4x USB 3.0, 2x USB 2.0, 2x RS232/422/485
NISE-3900RIntel Q370PCH, support Intel 8th gen Core i3/i5/i7DVI, HDMI, 2x GbE LAN, 6x USB 3.0, 4x USB 2.0, 2x RS232/422/485
NISE-3900E-H310Intel H310, support Intel 8th gen Core i3/i5/i7DVI, HDMI, 2x GbE LAN, 4x USB 3.0, 2x USB 2.0, 2x RS232/422/485

The fanless industrial PC NISE 3900 is the latest member of the NISE series, which is known for its compact embedded computers. Due to its powerful graphics and processor units, the NISE 3900 is also suitable for demanding applications such as process monitoring or smart production despite its compact size. Applications in the field of digital signage, process automation or in a Smart Factory are the focus of the NISE 3900 series.


The high performance of the NISE 3900 is made possible by Intel processors of the 8th generation, which are codenamed "Coffee Lake" at Intel. This latest generation of processors supports the hardware decoding of modern codecs such as HEVC/H.265. This new type of video compression offers tangible practical advantages in areas such as digital signage or IP camera surveillance. In the digital signage area, the reduction of the video bit rate ensures lower energy consumption and more efficient streaming with the same quality. The transmission of images from IP cameras and subsequent storage can be used more effectively on existing storage space, as video encoded in H.265 can save up to 40% of storage space compared to H.264. Screens and displays are controlled by the integrated Intel HD Graphics 630, HDMI, DisplayPort and DVI-D are supported.


The NISE 3900 system uses a Q370 PCH chipset. The board offers space for a 2.5" HDD and two internal Mini PCIe cards. Fieldbus, LTE and WLAN can be retrofitted. SIM cards and .M2 hard disks can be connected via an external socket. It supports up to 16 GB DDR4 memory, which clocks significantly higher than its predecessor and works more efficiently. The supported temperature range is -5 to 55° C. The ambient humidity can be up to 95% at 40°C with fail-safe operation at the same time.


Thanks to its high performance and first-class connectivity, the NISE 3900 is perfectly suited for resource-intensive IoT applications. Thanks to the GPIO, RS232/422/485 modules, the NISE 3900 can also be easily integrated into grown structures and conventional communication applications.


Documentation

Dimensions

Weight

weight brutto: 5.9 kg
weight netto: 4.5 kg
