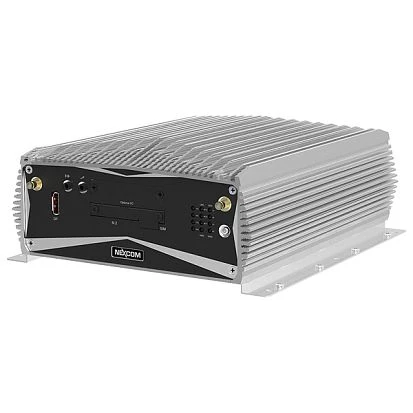

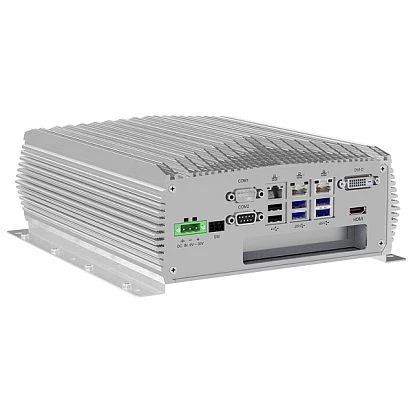

NISE-3800E-Q170-Skylake

NISE-3800E-Q170 High Performance Embedded PC introduces Intel Core i3 / i5 / i7 Skylake, up to 16GB DDR4 RAM, 3xGbE LAN, 6xUSB, 2xCOM, PCIe Powered by a sixth-generation Intel Core i3/i5/i7 processor, code-named Skylake, the NISE-3800E-Q170 is designed for high-performance computing and graphics performance industrial applications. The NISE-3800E-Q170 is one of the few compact Industrial Embedded PCs with support for PCI Express and Mini PCIe Extension Cards and can be customized with powerful plug-in cards. As processors, the NISE-3800E-Q170 uses the highly efficient and powerful Intel Core i3/i5/i7 CPU of the TE-series developed for embedded devices and mobile computers. The NISE-3800E-Q170 includes, for example, the Quad Core CPU Intel Core i7-6700TE with 3.40 GHz clock frequency or the Intel Core i3-6100TE with a 2.70 GHz dual core architecture. With a DDR4 RAM of up to 16 GB, the NISE-3800E-Q170 achieves very fast data transfer between CPU, main memory and the internal 2.5 '' Drive Bay for SATA HDD or SSD drives. Further storage options for the NISE-3800E-Q170 are an external M.2 SATA 3.0 port and mSATA SSD using Mini PCIe. Via Extension Slots for PCI Express x4 and two Mini Cards the NISE-3800E-Q170 allows the individual expansion of the hardware with additional or exotic interfaces. The NISE-3800E-Q170 features three 10/100/1000 Mbps LAN ports for complex and branched networks such as ring circuits, redundant connectivity, or the control of multiple IP devices over physically separate networks. The primary focus is on digital hardware via USB, for which the NISE-3800E-Q170 offers two USB 2.0 and four USB 3.0 interfaces. This supplements the NISE-3800E-Q170 with two serial COM RS232 / 422/485 with auto-flow control for bidirectional communication. For graphics applications such as H2M terminals, the NISE-3800E-Q170 offers the ability to control up to three separate, independent displays via three different HDMI, DVI-D and DisplayPort DP standards. Using a M.2 SSD, the NISE-3800E-Q170 allows harsh conditions and tolerates mechanical loads with acceleration up to 50G due to shock. The temperature range of -5 ° Celsius to + 55 ° Celsius in the fanless operation of a NISE-3800E-Q170 also makes it suitable for semi-protected locations - such as outdoor facilities for regenerative energies. Due to its versatile hardware and high performance, the NISE-3800E-Q170 opens up a wide range of tasks, from optical quality management in industrial production through automation of complex processes to mobile use in logistics or technical monitoring.
