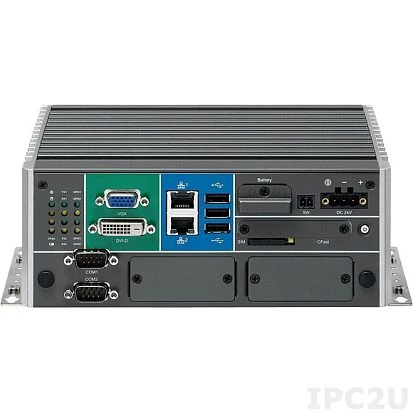

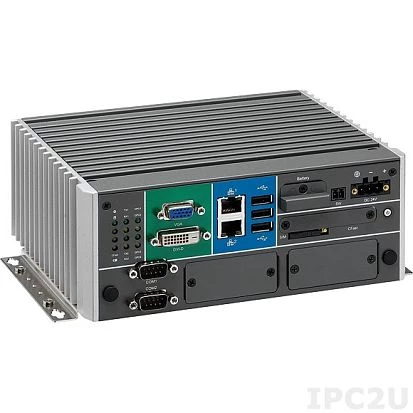

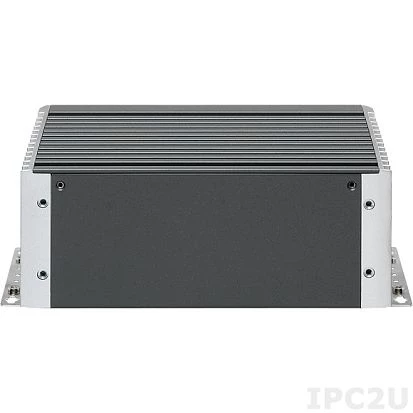

Embedded Computer, Intel Atom E3845 1.91GHz, up to 4GB DDR3L RAM, DVI-D, VGA, 2xGbE LAN, 2xRS-232/422/485, 3xUSB, Audio, 2.5" SATA HDD Drive Bay, CFast Slot,2xMini-PCIe, 24V DC-In, without Power Adapter
NISE-301
NEXCOM
SKU: 06627500
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Socket Type
1xDIMM
ECC
No
Maximum Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
USB 2.0
3
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
6
Mini-PCIe/Mini Card
6
Connectors
Connectors
ATX, 2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, SIM Card Slot
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 7, Windows 8.1
Dimensions and weight
Width
205 mm
Height
80 mm
Depth
160 mm
Operating Conditions
Operating Temperature
-5..55 °C
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2.5 kg
