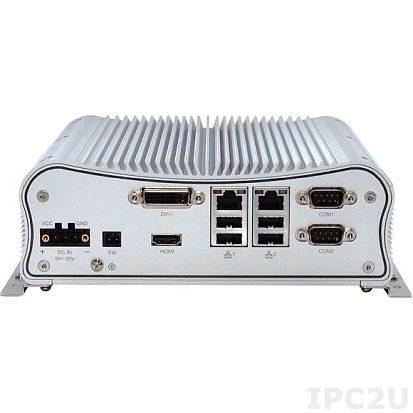

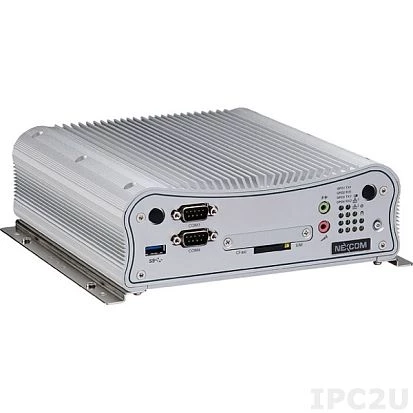

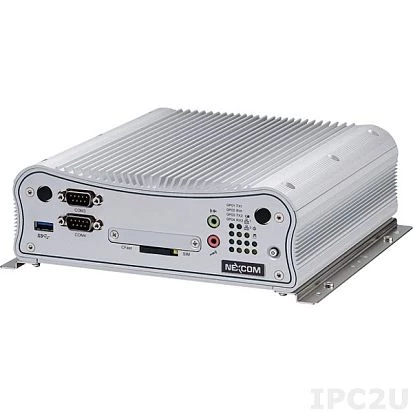

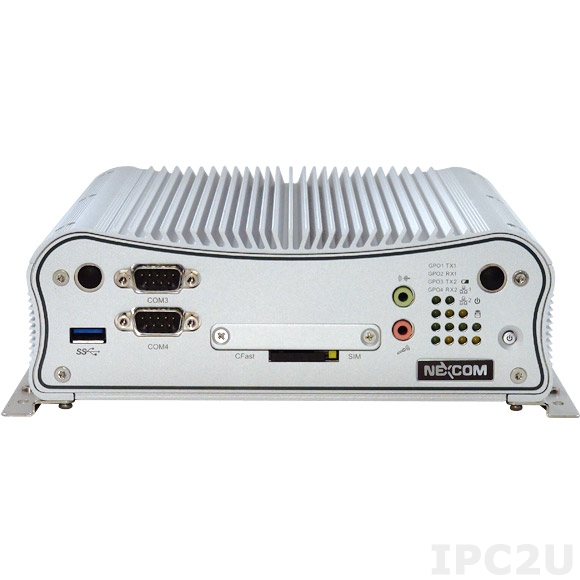

NISE-2400-J1900

Embedded Computer, Intel Celeron J1900 2GHz, DDR3L RAM up to 8GB, DVI-I, HDMI, 2xGbit LAN, 4xCOM, 5xUSB, SIM card holder, GPIO, Audio, 2.5" HDD Bay, CFast, 2xMini-PCIe, 9..30V DC-In

Price on request ()
Vendor:
NEXCOM
Construction Chassis:
Aluminium Chassis
Mounting Configuration:
Desktop, Wall
Processor Installed:
Intel Celeron J1900
Type:
Fanless
Operating System Compatibility:
Android, Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux kernel 3.x, Windows IoT Enterprise 10
Temperature:
-5 ... 55 °C
Specification
Vendor
Name:
NEXCOM
Construction
Construction Chassis:
Aluminium Chassis
Mounting Configuration:
Desktop, Wall
CPU
Processor Installed:
Intel Celeron J1900
Frequency:
2 GHz
Chipset
Chipset:
Intel Atom SoC
Memory
Memory Type:
DDR3L 1333, DDR3L 1066
Socket Type:
2xSODIMM 204pin
Assembly:
Removable
Maximum Memory:
8 GB
Graphic
Graphic Controller:
Integrated in CPU
Network Adapter
Controller Type:
Intel i210-IT
Total Ethernet:
2
10/100/1000 Mbit/s:
2
Interfaces
COM Total:
4
RS-232:
2
RS-232/422/485:
2
USB Total:
5
USB 2.0:
4
USB 3.0:
1
Digital Input-Output
GPIO:
4xDigital In / 4xDigital Out
Audio
Audio Controller:
Intel HD Audio
Storage Controllers
SATA 2 Channels:
1
Storage
mSATA Support:
Yes
CFast Socket:
Yes
Storage Cage
Number Of Cage External:
1
2.5" Cage Intenal:
1
Extension Slots
Total:
2
Mini-PCIe/Mini Card:
2 (1x for mSATA)
Additional Functions
Quantity of SIM Card:
Yes
Cooling
Type:
Fanless
Connectors / Cables
Connectors:
4xDB9, DVI-I, HDMI, 2xRJ45, 5xUSB, Mic In, Line Out, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC:
9 ... 30 V
Power Supply
Type of Power Supply:
External power adapter AC/DC (option)
Output Power:
60 W
Software
Operating System Compatibility:
Android, Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux kernel 3.x, Windows IoT Enterprise 10
Dimensions and weight
Width:
191 mm
Height:
60 mm
Depth:
200 mm
Operating Conditions
Temperature:
-5 ... 55 °C (Ambient with air flow)
Humidity:
10 ... 95 % (non-condensing)
Vibration:
Random: 0.5Grms @ 5~500 Hz
Shock:
HDD: 20G, half sine, 11ms
Standards and Certifications
Certifications:
CE, FCC Class A
Documentation

Dimensions

Weight

weight brutto: 3.68 kg
