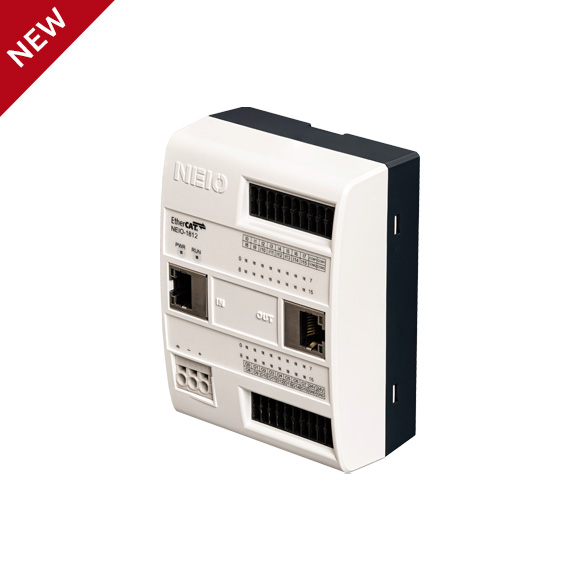

NEIO-1812
NEXCOM
SKU: 80248100
Industrial EtherCAT digital I/O slave module, IP20, 16xDI, 16xDO, 2x100Base-TX, 24 VDC-in, Operating Temperature -5..60 C
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP20
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Wet: Sink/Source
Isolation DIO
Yes
Digital Output
Total channels of digital output
16
Sink/Source
Source
Output voltage
24~24 V
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
77.8 mm
Depth
104.5 mm
Height
51.84 mm
Operating Conditions
Operating Temperature
-5..60 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
