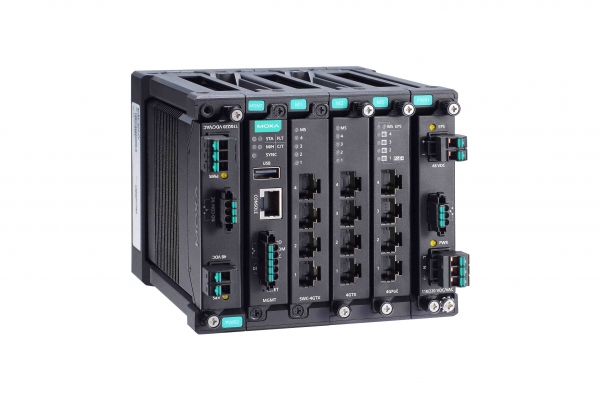

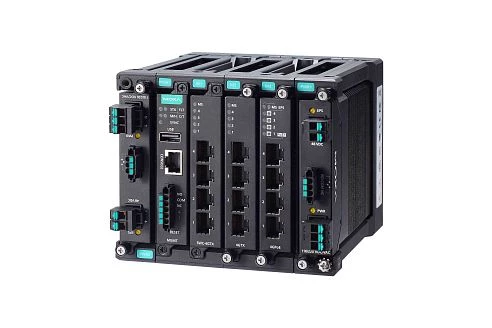

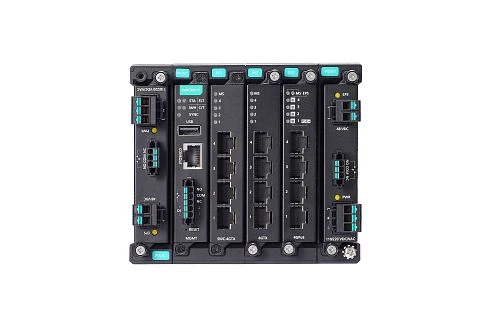

MDS-G4012-T
MOXA
SKU: 08840700
Layer 2 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit ports, 2 slots for isolated power modules, up to 12 Gigabit ports, -40...+75C
Price on request
Available
Available
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Broadcast Storm Protection, Link Aggregation, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, NTP Authentication, Security features based on IEC 62443, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
1024
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, UDP, DNS, VLAN, TCP/IP, QoS, SNTP, GVRP, RMON, TFTP, ARP, NTP Server/Client, SNMP Inform, GMRP, RARP, Private MIB, IGMP Snooping v1/v2/v3, IGMP Querier, ICMP
Reservation protocols
STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
1
Type
Wet contact
Level of Logic "0"
-30~3 V
Level of Logic "1"
13~30 V
Digital Output
Total channels of digital output
3
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC

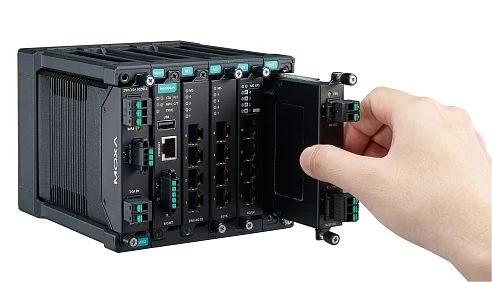

Expansion Module
Quantity of Slots
2
Supported Module
SFP-1G, SFP-1FE, LM-7000H series
LED / Controls
Setup of Operation Mode
Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45), USB type A
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
134 mm
Depth
163.25 mm
Height
115 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Oil And Gas
Class I Div.2 Groups A, B, C, D
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Automotive
NEMA TS2
Safety
EN 62368-1 (LVD)
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.3 kg
