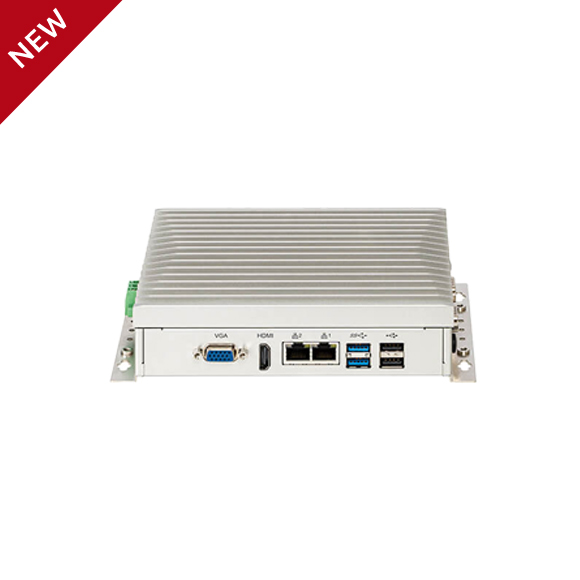

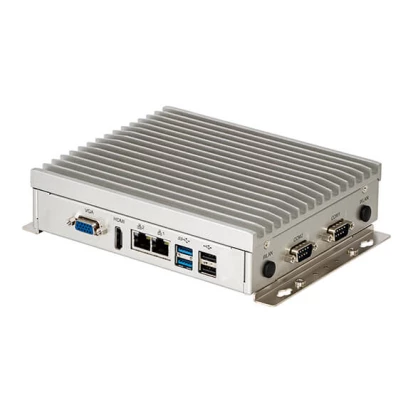

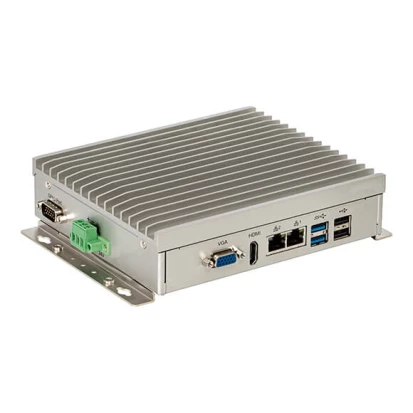

MARS300
NEXCOM
SKU: 80248600
Fanless Robotic Control Box PC, Intel Celeron J6412 CPU, Up to 32GB DDR4 SO-DIMM RAM, HDMI, VGA, 2xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1x8-bit GPIO, 1xFull-Size MiniPCIe, 1xM.2 2242 Key-B, 12/24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 B
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), DB15 GPIO
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
198.6 mm
Height
50.1 mm
Depth
154 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.3 kg
Gross Weight
2 kg
