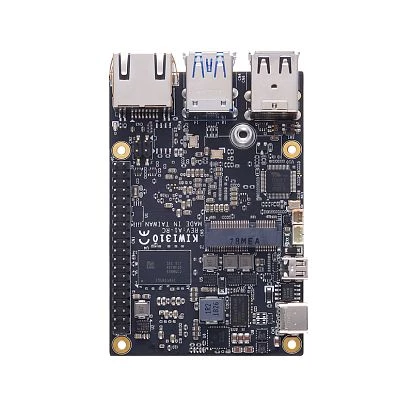

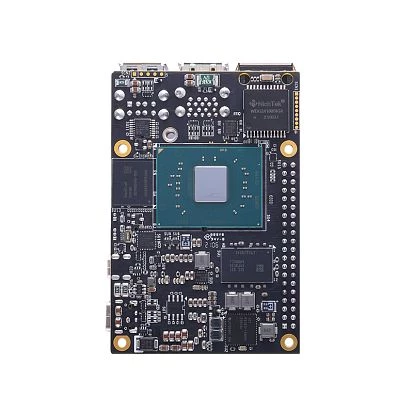

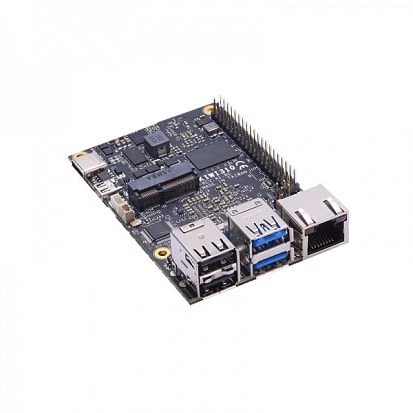

KIWI310-J2C-H
AXIOMTEK
SKU: 09475800
1.8" SBC with Intel Celeron N3350 1.1GHz, 4GB LPDDR4, 64GB eMMC, MicroHDMI, 1xGbE LAN, 2xUSB3.0, 2xUSB 2.0, 40-pin GPIO, M.2 Key-E, with heatsink
Price on request
Available
Available
System Architecture
Form Factor
Femto-ITX 1.8"
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
1
Interfaces
USB Total
2
USB 2.0
2
USB v3.x
2
Extension Slots
M.2
1
Dimensions and weight
Width
56 mm
Length
85 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
System Architecture
Form Factor
Femto-ITX 1.8"
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
1
Interfaces
USB Total
2
USB 2.0
2
USB v3.x
2
Extension Slots
M.2
1
Dimensions and weight
Width
56 mm
Length
85 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
System Architecture
Form Factor
Femto-ITX 1.8"
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
1
Interfaces
USB Total
2
USB 2.0
2
USB v3.x
2
Extension Slots
M.2
1
Dimensions and weight
Width
56 mm
Length
85 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
System Architecture
Form Factor
Femto-ITX 1.8"
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
1
Interfaces
USB Total
2
USB 2.0
2
USB v3.x
2
Extension Slots
M.2
1
Dimensions and weight
Width
56 mm
Length
85 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
