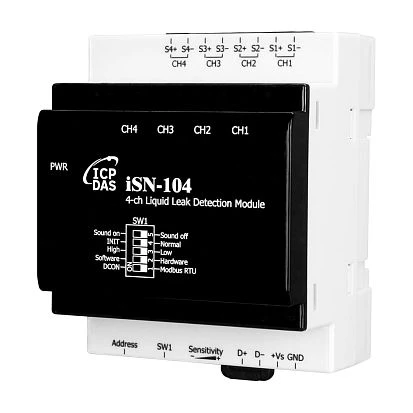

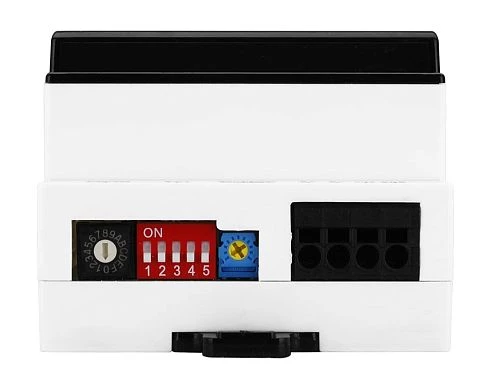

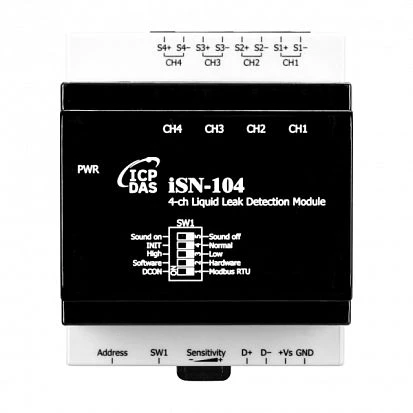

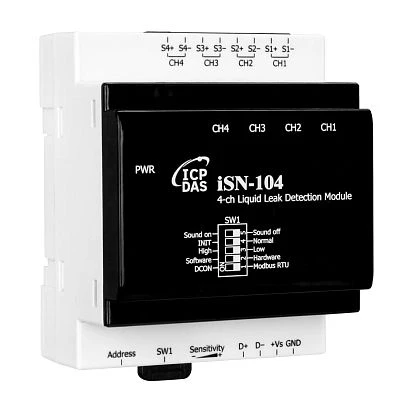

iSN-104

ICP DAS
SKU: 09653800
4-channel Liquid Leak Detection Module, DCON, Modbus RTU, 26KO to 580KO detection sensivity, -25C to +75C operating temperature, 10-30VDC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
RS-485
1
Digital Output
Total channels of digital output
4
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions and weight
Width
72 mm
Depth
57 mm
Height
95 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.1 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
RS-485
1
Digital Output
Total channels of digital output
4
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions and weight
Width
72 mm
Depth
57 mm
Height
95 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.1 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
RS-485
1
Digital Output
Total channels of digital output
4
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions and weight
Width
72 mm
Depth
57 mm
Height
95 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.1 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
RS-485
1
Digital Output
Total channels of digital output
4
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions and weight
Width
72 mm
Depth
57 mm
Height
95 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.1 kg
Gross Weight
0.1 kg
iSN-104-E
ICP DAS iSN-104-E 4-channel Liquid Leak Detection Module, DCON, Modbus TCP, 26KO to 580KO detection sensivity, -25C to +75C operating temperature, 10-48VDC
