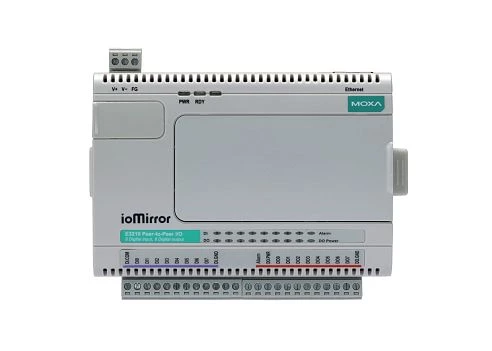

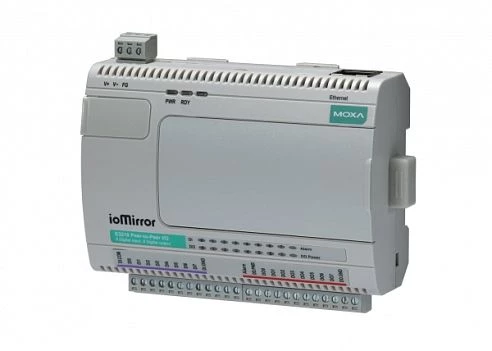

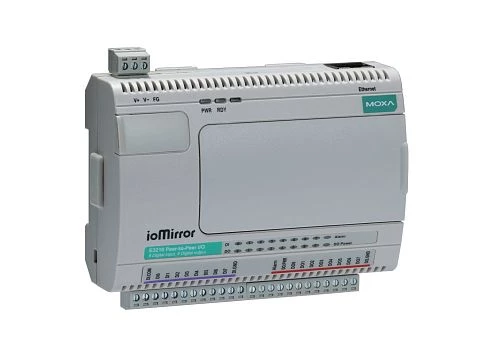

ioMirror E3210
MOXA
SKU: 03758200
Ethernet Remote I/O Server, 8DI/8DO, 10/100Mbps Ethernet with Modbus/TCP, 24VDC Power Input
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Software
Programming Method
IF-THEN-ELSE Logic Rules
Development Software
ioAdmin
Digital Input
Total channels of digital input
8
Isolation of Digital Input
3000 V
Type
Dry contact
Sink/Source
Source
Level of Logic "0"
10~30 V
Level of Logic "1"
0~3 V
Digital Output
Total channels of digital output
8
Sink/Source
Sink
Max. load current
200 mA
Ethernet
10/100 Mbit/s
1
Interfaces
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Dimensions and weight
Width
115 mm
Depth
45.6 mm
Height
79 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.39 kg
