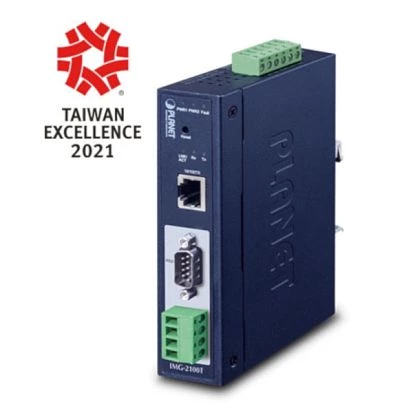

IMG-2100T
Planet
SKU: 57298600
IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 10/100BASE-TX), Dual 9..48V DC-In, -40..+75C operation temperature
Price on request
Available
Available
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
Isolation of COM Ports
1 kV (RS-422/485)
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
LED / Controls
LED
Power LED, Level signal LED
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
87.8 mm
Height
135 mm
Standards and Certifications
Certifications
CE
EMI
FCC Part 15
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.24 kg
Gross Weight
0.6 kg
