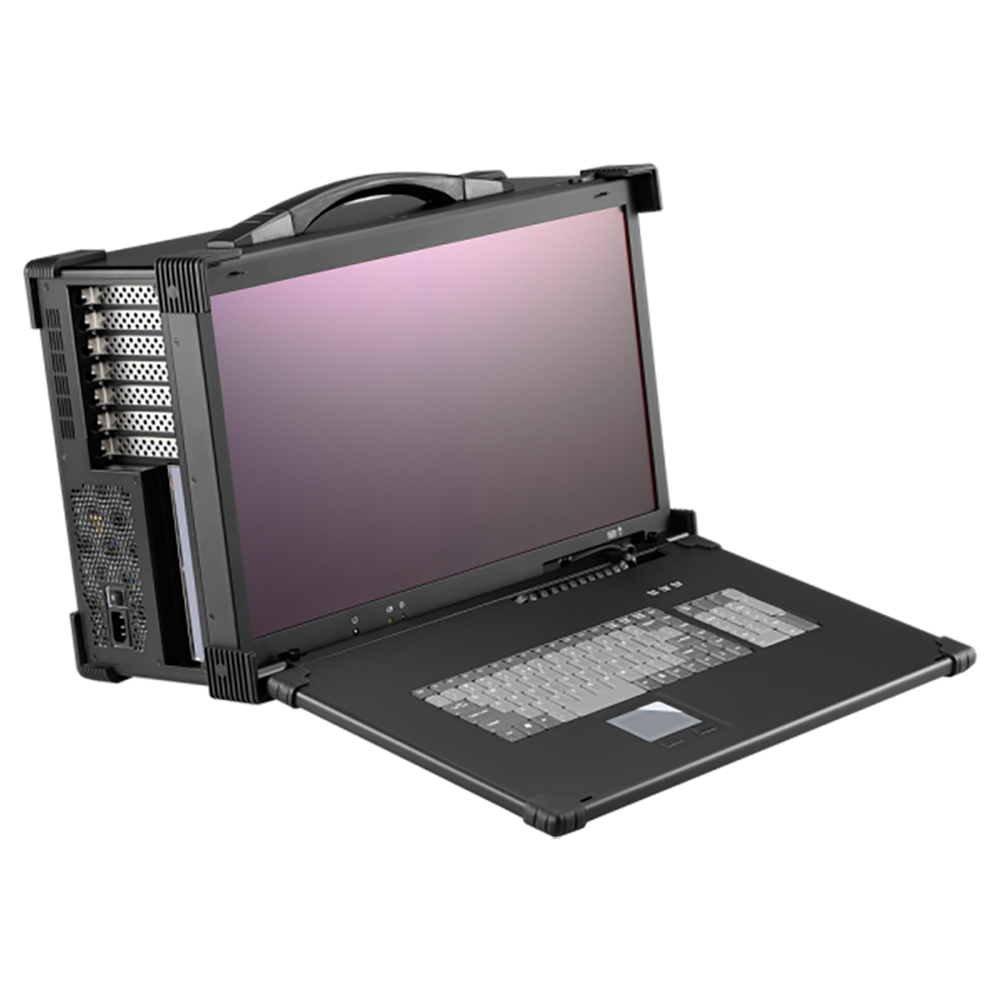

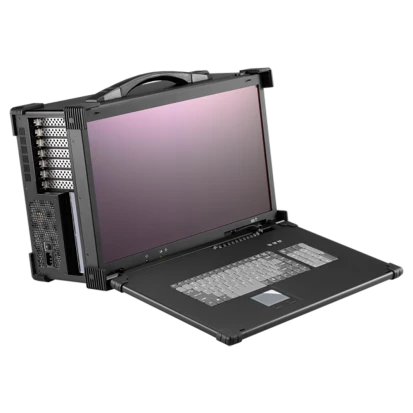

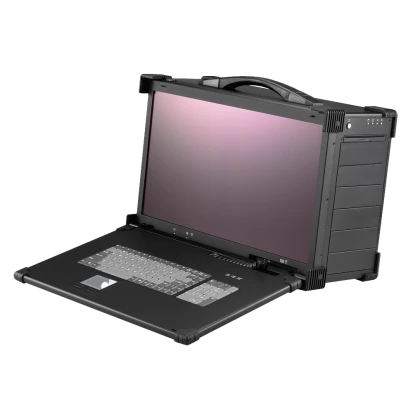

iKERN-ARP690-FHD-7A600
Industrial Personal Computer 2U GmbH
SKU: 80136900
Industrial Portable Workstation ARP690, 21.5" 1920x1080 TFT LCD DP input, Intel Core i5 14/13/12th Gen, 8GB DDR4 RAM, 256GB SSD, 6x5.25" Bays, HDMI/DP/VGA, 3x2.5Gbit LAN, 2xCOM (3xCOM option), 5xUSB3.2, 1xUSB-C, 1xPCIe x16, 4xPCIe x4, 2xPCI, 600W PSU
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Portable
Type
Fan
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Processor Installed
Intel Core i5-14500
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Max CPU frequency
5 GHz
Chipset
Chipset
Intel W680
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB v3.x
6
Audio
Audio Controller
Realtek ALC897
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
7
Slim Optical Disk Drive bays
1
5.25" Cage External
6
Extension Slots
Total
10
PCI Express x16
2
PCI Express x4
3
PCI
2
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 2260 M, 22110 M
Additional Functions
Watchdog timer type
Software
Keyboard / Pointing Devices
Type Keyboard
Industrial
Number of Keys
104
Layout
German
Type Mouse
TouchPad
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Internal Ports
4xCOM, USB 2.0, GPIO, USB 3.0
Connectors
2xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 7xUSB, Audio (in/out/Mic), AC Input, Display Port, USB type C
Power Supply
Type of Power Supply
ATX PS/2
Output Power
600 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
524 mm
Height
372 mm
Depth
226 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
15 kg
Gross Weight
26 kg
