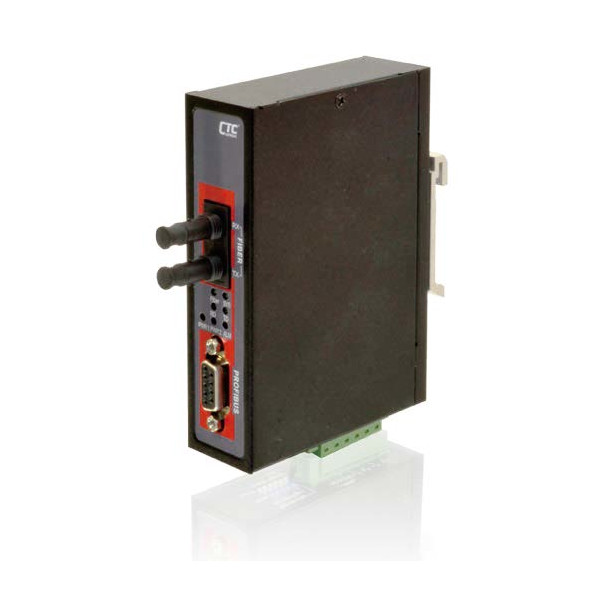

IFC-Serial-PRO-E
CTC Union
SKU: 56671200
Industrial PROFIBUS to Fiber Converter, SC/ST port, Distance 2km, 2.5kV Isolation, Redundant Dual 12/24/48VDC Input Power, -40.. 75C Operating Temperature
Price on request
Available
Available
Ethernet
10/100 Mbit/s
1
Type 10/100 Mbit/s
SC, ST
Interfaces
COM Total
1
RS-485
1
Isolation of COM Ports
2.5 kV (RS-485)
Supported Protocols
Industrial Protocols
Profibus
LED / Controls
LED
Module Fail, TX LED, RX LED, PWR1, PWR2
Setup of Operation Mode
By Switches
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
38.6 mm
Depth
106 mm
Height
142.1 mm
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN 61000-6-4
Freefall
IEC 60068-2-32
Safety
UL 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.64 kg
Gross Weight
1.2 kg
